Eureka 2596 Atlantis Upright Extractor Parts List & Schematic

ItemModels To FitPart Number
1. Suction Cover & Graphics 2596A73533-1
2. Tank 2596APart No Longer Available
3. Detergent Tank 2596APart No Longer Available
4. Cleaning Solution 2596A73570A
5. Plenum Filter 2596APart No Longer Available
6. Agitator Brush 2596APart No Longer Available
8. Grooming Brush 2596A72375
9. Recovery Tank 2596APart No Longer Available
10. Upholstery Hose & Handle 2596A72757
11. Suction Nozzle 2596APart No Longer Available

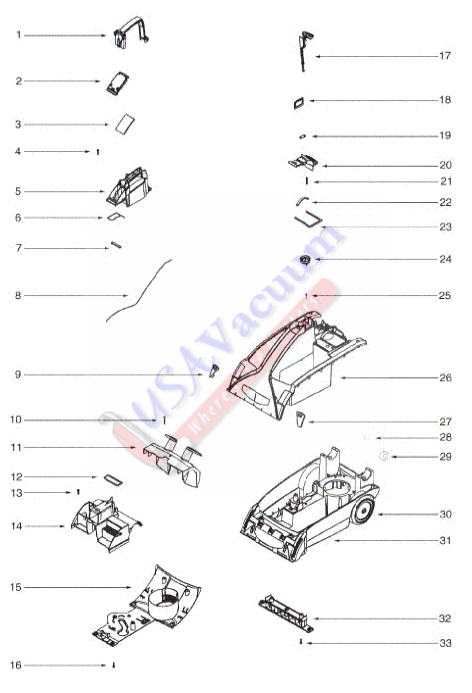

Eureka 2596 Atlantis Upright Extractor Parts List & Schematic
ItemModels To FitPart Number
1. Carry Handle Cap & Graphics 2596A73534-3
2. Nozzle Port Door 2596A72380-355N
3. Door Gasket 2596A72865
4. Screw 2596A53238-27
5. Carry Handle 2596A72524-427N
6. Cup Gasket 2596A72964
7. Suction Cover Gasket 2596A72866
8. Suction Cover Gasket 2596A72874
9. Suction Cove Slide Lock 2596A72759-355N
10. Screw 2596A53238-36
11. Cord Wrap 2596A72754-3
12. Recovery Tank Gasket 2596A72861
13. Screw 2596A53238-27
14. Carrying Handle Platform 2596A72740A-427N
15. Bottom Cover 2596A72346-355N
16. Screw 2596A53238-27
17. Detergent Valve Plunger 2596A73023
18. Intake Gasket 2596A72863
19. Hold Down Clamp 2596A72787
20. Handle Release 2596A72377-355N
21. Spring 2596A61866
22. Compression Spring 2596A72983
23. Motor Cover Gasket 2596A72860
24. Detergent Receiver 2596A72540-119N
25. Screw 2596A53238-27
26. Motor Cover 2596A72741A-4
27. Suction Cove Slide Lock 2596A72537-355N
28. Axle 2596A38392
29. Pronglock Retainer 2596A54709
30. Wheel 2596A72736
31. Base 2596A72735A
32. Agitator 2596A72630
33. Screw 2596A53238-27
Handle Pivot Clamp 2596A76223-355N
Eureka 2596 Atlantis Upright Extractor Parts List & Schematic
ItemModels To FitPart Number
1. Handle 2596A72616-3
2. Supply Cord 2596A38752-2
3. Tube Clamp 2596A72979
4. Diverter Manifold 2596A72496A
5. Detergent Valve 2596A72986
6. Tubing 2596A70316-7
7. Tool Caddy 2596A73232-3
8. Switch & Wire 2596A73368
9. Screw 2596A53238-27
10. Motor Can Gasket 2596A72859
11. Motor 2596A72382
12. Motor Gasket 2596A72834
13. Agitator Drive 2596A72737
14. Air Separator 2596A73207
15. Pump & Motor 2596APart No Longer Available
16. Mixing Manifold Gasket 2596APart No Longer Available
17. Mixing Manifold 2596A72633
