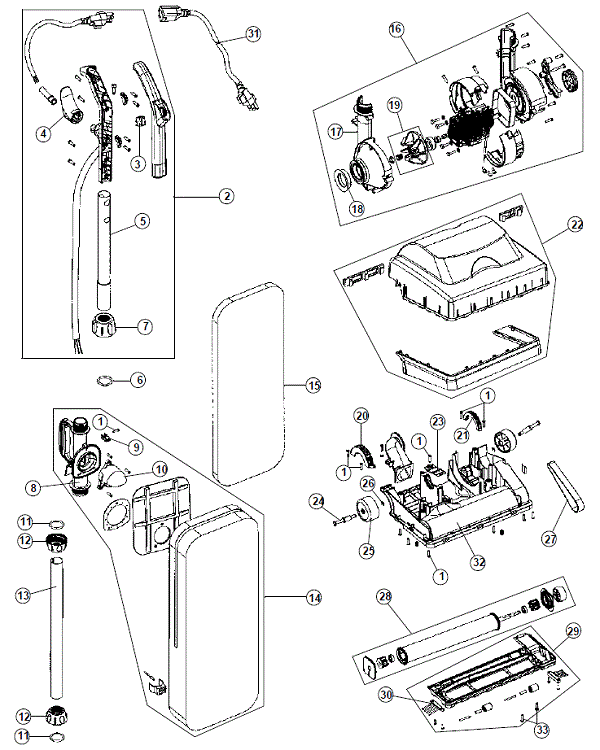

Hoover C1320 Signature Commercial Lightweight Vacuum Parts List & Schematic
ItemModels To FitPart Number
1. Body Screw C13201503819000
2. Upper Handle Assembly - On/Off Rocker Switch C13201249005
3. Switch - On/Off Rocker Switch C13201JR0010000
4. Cord Hook C13201JR0012000
5. Upper Handle Tube C13201JR0018000
6. Handle O-Ring Gasket - Small Round C13201JR0027000
7. Upper Handle Collar C13201JR0026000
8. Carrying Handle Tube Grip C13201JR0028000
9. Cord Clip C13201JR0029000
10. Dirt Inlet C13201JR0035000
11. Handle O-Ring Gasket - V Shape C13201RYV650000
12. Lower Handle Collar C13201JR0025000
13. Lower Handle Tube C13201JR0023000
14. Hepa Cloth Bag Assembly - Black C13201250013
15. Type B Bag - Allergen C13204010102B
15. Type B Bag - 3 Pack / Allergen C13204010103B
15. Type B Bag - Hepa C132043655119
15. Type B Bag - 2 Pack / Hepa C1320AH10100
16. Complete Motor Assembly C13201248012
17. Motor Fan Cover C13201JR0015000
18. Fan Cover Seal C13201JR0014000
19. Fan C13201JR0013000
20. Left Clamp C13201JR0031000
21. Right Clamp C13201JR0030000
22. Nozzle Cover With Bumpers C13201033005
23. Handle Stopper C13201JR0022000
24. Wheel Pin C13201JR0021000
25. Wheel Assembly C13201JR0019000
26. Wheel E-Clip C13201JR0020000
27. Style 18 Belt - 2 Pack C132040201318
28. Brush Roll Assembly C13202JR0010000
29. Nozzle Guard Assembly C13201JR0032000
30. Edge Cleaner Assembly C13201JR0033000
31. Power Extension Cord C13201JR2100000
32. Nozzle Base C1320513175001
33. Screw - Nozzle Guard C13201JV0103000
