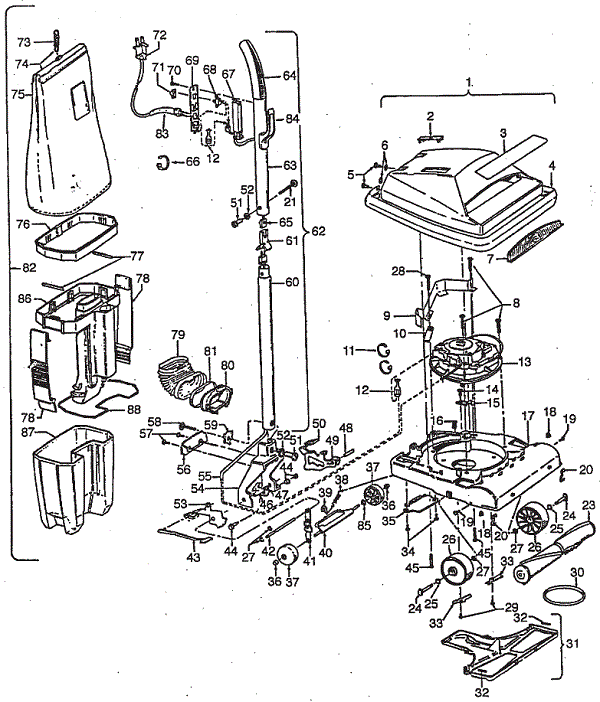

Hoover C1525 Guardsman Bagless Upright Parts List & Schematic, Hoover Model C1525 Parts List & Schematic
ItemPart Number
01. Hood Part No Longer Available
02. Indicator Lens 48111008
03. Hood Nameplate Part No Longer Available
04. Furniture Guard Part No Longer Available
05. Rivet 12997AW
06. Washer 168278
07. Panel Part No Longer Available
08. Screw 21447220
09. Baffle 34287012
10. Retainer & Sleeving 41119009
11. Cable Tie 27479307
12. Wire Nut 48969
13. Motor Assembly 43574192
14. Screw - Self Tapping 21447229
15. Pivot Pin Retainer 34665007
16. Spring 12559
17. Main Body 42242276
18. Support Washer 21312781
19. Rivet Part No Longer Available
20. Agitator Retainer Spring 34784021
21. Handle Clamp Bolt 21631301
22. Not Required Part No Longer Available
23. Thread Guard - Right Hand 012985AY
23. Conical Washer 21347003
23. Agitator Shaft 32724008
23. Agitator End 41435070
23. Agitator Bearing 43267002
23. Agitator Assembly 48414021
23. Agitator Brush Back 48445001
23. Thread Guard Left Hand 48495AY
24. Frontwheel Shaft 047457AY
25. Washer 21312724
26. Front Wheel 34791
27. Lock Ring Part No Longer Available
28. Screw 21447220
29. Screw - Self Tapping 21447229
30. Belt 44783AG
31. Bottom Plate 37245081
32. Support Pad 34111001
33. Latch 36153006
34. Screw - Self Tapping 21447229
35. Axle/Bag Flange Retainer 35434040
36. Wheel Retainer 32182001
37. Rear Wheel 38521019
38. Spring 161513
39. Yoke 34252005
40. Rear Wheel Shaft 33152003
41. Cam Follower 43263005
42. Bail Shaft 161509
43. Indicator 51151034
44. Handle Control Pin Part No Longer Available
45. Screw 21447020
46. Bag Flange Clamp Lever 19907
47. Spring 048409FW
48. Pivot Pin 47450
49. Handle Contol Lever 43137047
50. Foot Pad 38426080
51. Handle Nut 32277021
52. Lock Washer 13704
53. Nozzle Adjustment Lever 38456044
54. Bail 41416079
55. Connector Cord 46321033
56. Bail Cover Plate 37954001
57. Screw Self Tapping Part No Longer Available
58. Handle Bolt 21631302
59. Handle Retainer Plate 35463011
60. Lower Handle Part No Longer Available
61. Insulator Part No Longer Available
62. Handle Complete Part No Longer Available
63. Upper Handle 48644114
64. Handle Grip 39454070
65. Connector/Plug Assembly Part No Longer Available
66. Wire Tie 27479307
67. Switch Case 37214070
68. Switch 28177004
69. Switch Cover 37258110
70. Screw 21465314
71. Switch Button Part No Longer Available
72. Attachment Cord-50' Part No Longer Available
73. Support Spring 38335009
74. Bag Clip & Spring 41128021
75. Cloth Bag 43667041
76. Bag Expander 35173001
77. Seal 34112015
78. Latch 36155011
79. Bellows 38673001
80. Bag Ring 41424011
81. Nut 15854
81. Screw 17206
81. Clamp Band 49044
82. Dust Cup Assembly Part No Longer Available
83. Cord Protector Part No Longer Available
84. Cord Clip 39441016
85. Washer 21312806
86. Support & Bellows 41427006
87. Dirt Cup 38775001
88. Gasket 34123020
89. Assembly Intruction Sheet Part No Longer Available
89. Owner Manual Part No Longer Available
89. Dirt Cup Middle Pad58216006
89. Front Support 58343025
89. Rear Support 58366012
Hoover C1525 Guardsman Bagless Upright Parts List & Schematic, Hoover Model C1525 Parts List & Schematic
ItemPart Number
01. Screw Part No Longer Available
02. Lock Washer 14062
03. Indicator Guide Assembly 41961009
04. Upper Motor Bearing 42934002
05. Vent Fan-Plastic 38755005
06. Screw Part No Longer Available
07. Upper Motor Casing 42195003
08. Motor Brush 47318012
09. Brush Cap 36315003
10. Armature 44768051
11. Field Bolt Part No Longer Available
12. Field Coil 45412035
13. Screw 21772501
14. Indicator Guide Spring 35276006
15. Motor Case Left Hand Part No Longer Available
16. Nut Hex 15673
17. Bearing Retainer-8mm 32184003
18. Washer-Lock 19772
19. Nut Part No Longer Available
20. Spacer Part No Longer Available
21. Washer Part No Longer Available
22. Fan 38755011
23. Bearing Assembly Part No Longer Available
24. Motor Pulley 43251003
25. Motor Bearing - 8mm 24152807
26. Terminal 14320
