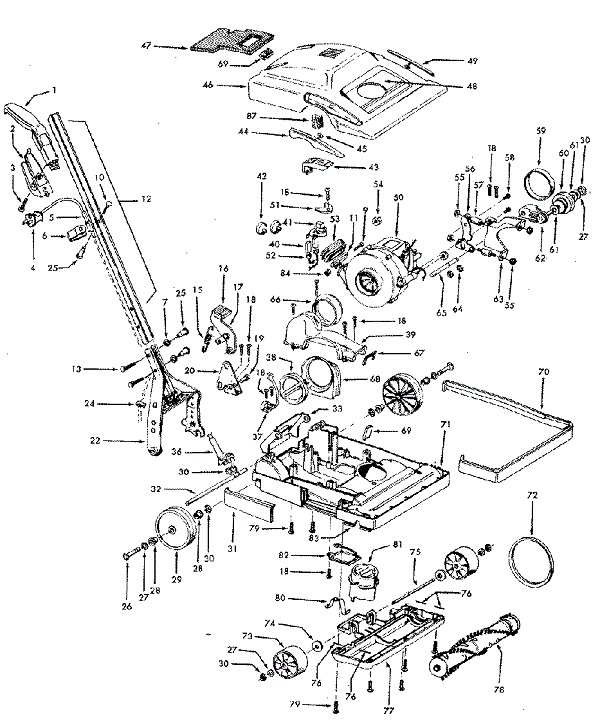

Hoover C1805 Professional Commercial Upright Parts List & Schematic, Hoover Model C1805 Parts LIst & Schematic
ItemModels To FitPart Number
1. Handle Grip Assembly C180539454060
2. Cord Hook - Black C180539442017
3. Screw - Self Tapping C180521447215
4. Power Cord - 50 Brite Yellow C180546583128
4. Power Cord - Substitution C180591001025
5. Cord Protector C180536215025
6. Cord Retainer Clamp C180536172040
7. Lock Washer C1805013704--
9. Screw C180521765140
10. Handle Clamp Bolt C180521631301
11. Clamp Band C180534797008
12. Handle Assembly Complete C180548631149
13. Handle Bolt C180521831024
15. Spring C180538335008
16. Foot Pad - Black C180538426030
17. Handle Release Lever - Black C180543151006
18. Screw C180521447003
19. Shaft C180532215002
20. Foot Lever Support C180535214009
22. Bail / Handle Fork C180541416022
24. Cord Retainer - Fireglow Orange C180536172015
25. Handle Clamp Nut C180532277008
26. Rear Wheel Axle C180532512001
27. Washer C1805163110--
28. Rear Wheel Bearing C1805162143--
29. Rear Wheel - Black C180538522036
30. Lock Ring C1805160017--
31. Furniture Guard - Short C180536231154
32. Bail / Handle Fork Shaft C180532563009
33. Exhaust Flange Assembly C180542256106
36. Cord Protector C180536216008
37. Strain Relief C180527478611
38. Cap C180537257282
39. Air Duct C180538657020
40. Insulating Pod C1805162961--
41. Switch C180528212009
42. Cable Tie C180527479307
43. Switch Pedal C180538426047
44. Wear Strip - Right Safety Orange Order 36222021 C180536222017
44. Wear Strip - Right Black C180536222021
45. Speed Nut C180521364102
46. Hood / Nozzle Cover - Dove Gray C180537252116
46. Hood / Nozzle Cover - Substitution Blk C180537252024
47. Intake Duct Gasket C180538783005
48. Hood Name Plate - C1820 C180551353002
49. Wear Strip - Left Safety Orange Order 36222014 C180536222012
49. Wear Strip - Left Black C180536222014
50. Motor - 6.5 C180543574106
51. Switch Clamp C180536171030
52. Terminal C1805163055--
53. Exhaust Flange Bellow C180538671008
54. Hex Nut C180521652005
55. Nut C180521852158
56. Mounting Bracket C180536321002
57. Sandwich Mount C180532724010
58. Screw - Self Tapping 5/8 C1805214793DA
59. Belt C180538528036
60. Pulley Assembly C180543256002
61. Bearing C180531158008
62. Pulley Arm And Shaft C180543256007
63. Motor Support Bracket C180536321006
64. Lock Ring C1805013730--
65. Shaft Pulley Arm Support C180531534001
66. Duct Boot - Oyster White C180538671005
67. Air Duct Gasket C180534253013
68. Cap Lock Assembly C180541119008
69. Motor Cushion C180534141005
70. Furniture Guard - Transparent C180536231153
71. Main Body / Nozzle Base - Black C180537241116
72. V-Belt C180538528013
73. Front Wheel C180538522034
74. Washer C180521312754
75. Front Axle C180532543005
76. Bottom Plate Duct Seal C1805Part No Longer Available
77. Bottom Plate C180537245066
78. Agitator Assembly - 14 C180548416035
79. Screw - Self Tapping C180521447215
80. Spring C180538381005
81. Height Adjustment Cap - Black C180536436005
82. Access Door C180535121001
84. Nut C1805015854EF

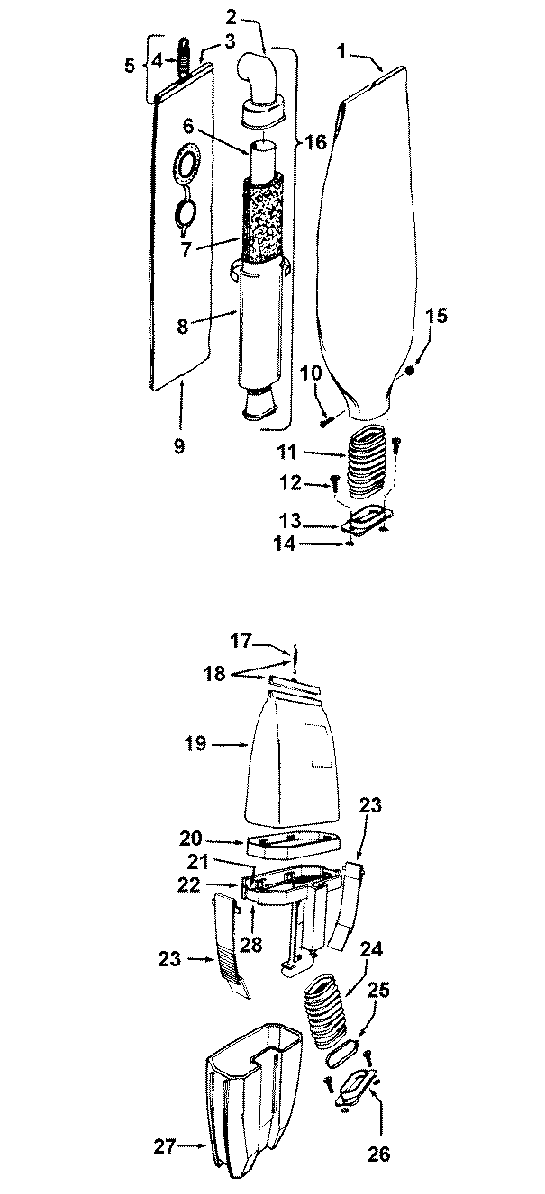

Hoover C1805 Professional Commercial Upright Parts List & Schematic, Hoover Model C1805 Parts LIst & Schematic
ItemModels To FitPart Number
1. Cloth Bag Assembly - Complete C1805Part No Longer Available
1. Cloth Bag Assembly C1805Part No Longer Available
2. Top Fill Tube C1805Part No Longer Available
3. Bag Closure Clip - Order 41128016 C1805Part No Longer Available
4. Clip Spring C180538336019
5. Bag Clip And Spring Assembly C180541128016
6. Muffler Liner C180531746020
7. Foam Muffler C180534133005
8. Muffler Housing C180537257083
9. Reusable Inner Bag Assembly Top Clip Order 43667054 C180543667037
9. Reusable Inner Bag Assembly Bottom Clip C180543667054
9. Top Fill Paper Bag - 3 Pack C18054010001A
9. Top Fill Paper Bag / Allergen - 3 Pack C18054010100A
10. Screw C1805017206--
11. Bellows C180538673010
12. Screw C180536112002
13. Bag Flange C180536425005
14. Lock Ring C1805013759--
15. Nut C1805015854EF
16. Muffler Assembly C180542256012
17. Clip Support Spring C180538336019
18. Bag Clip And Spring Assembly C180541128016
19. Cloth Bag C180543667057
20. Bag Expander C180535173001
21. Seal C180534122009
22. Dirt Cup Support C180541427012
23. Latch - Black C180536155011
24. Bellows - Black C180538673001
25. Clamp Band C1805049044--
25. Nut C1805015854EF
25. Screw C1805017206--
26. Bag Flange C180541424018
27. Dirt Cup Assembly C180538775001
28. Gasket C180534123020

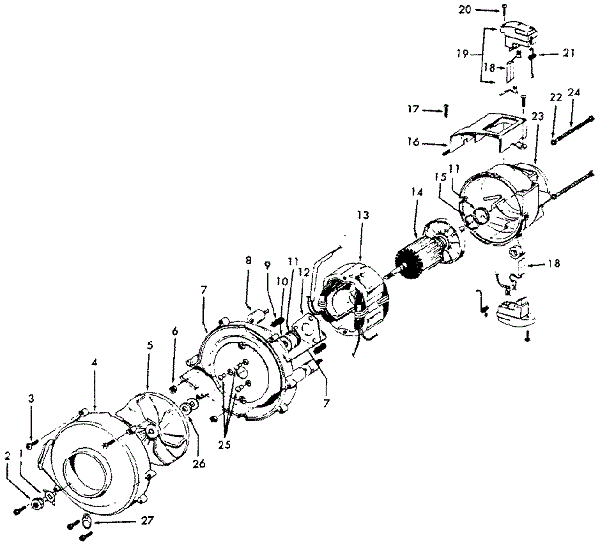

Hoover C1805 Professional Commercial Upright Parts List & Schematic, Hoover Model C1805 Parts LIst & Schematic
ItemModels To FitPart Number
1. Lock Washer C1805Part No Longer Available
2. Nut C180533426001
3. Screw C180521447072
4. Fan Chamber Cover C180538736025
5. Fan C180538755012
6. Nut C180521641557
7. Fan Chamber Assembly C180543588018
8. Sandwich Mount C1805Part No Longer Available
9. Spring C1805012854--
10. Motor Bearing - 8Mm C180524152807
11. Star Ring C180524198001
12. Motor Bearing Retainer C1805012025--
13. Field Coil - 6.5 - Order 43574106 Motor C180590001007
13. Field Coil - 5.2 C180545311056
14. Armature - 6.5 - Order 43574106 Motor C180544765187
14. Armature - 5.2 C180544765184
15. Wave Spring Washer C180521345115
16. Air Intake Duct C180537257086
17. Screw C180521447041
18. Brush And Terminal Assembly C180547315010
19. Brush Carrier Assembly C180547318008
20. Screw C180521479302
21. Spring C180538353004
22. Lock Washer C180521338006
23. Motor Housing C180537191090
24. Screw C180521563061
25. Rivet - Semi Tubular C1805012503EF
26. Washer C1805166563--
27. Wire Holder C1805045517--
Hoover C1805 Professional Commercial Upright Parts List & Schematic, Hoover Model C1805 Parts LIst & Schematic
ItemModels To FitPart Number
1. Thread Guard Assembly C180541435066
2. Bearing - Motor C180524152807
3. Wave Spring Washer C180521345113
4. Agitator End C180536422004
5. Agitator Body - 14 Order 48416035 Complete Agitator Assmby C1805Part No Longer Available
5. Agitator Body - 18 Order 48416036 Complete Agitator Assmby C180548416017
6. Thread Guard Assembly C180541435061
7. Agitator Shaft - 14 C180532873007
7. Agitator Shaft - 18 C180532873004
Agitator Assembly Complete - 14 C180548416035
Agitator Assembly Complete - 18 C180548416036
