You are here: Home > HOOVER > HOOVER PARTS BY SERIES > HOOVER COMMERCIAL PARTS
(C SERIES)
 > C1820 - Hoover Conquest Commercial Bagged Upright
We found 58 results matching your criteria.
Hoover C1820 Conquest Commercial Upright Handle and Body Assembly Parts List & Schematic, Hoover Model C1820 Parts LIst & Schematic
ItemModels To FitPart Number
01. Twin Hood - Black C182042251337
02. Intake Duct Gasket C182038783005
03. Speed Nut C182021364102
04. Wear Strip - Left C182036222014
05. Hood Name Plate C182051353002
06. Motor Cushion C182031164004
07. Wear Strip - Right C182036222021
08. Handle Nut C182032277021
09. Lock Washer C1820013704
10. Handle Bolt C182021631302
11. Cord Retainer C182036172015
12. Bail / Handle Fork - Chromium Plate C182041416081
13. Bolt C1820Part No Longer Available
14. Lock Washer C1820Part No Longer Available
15. Flat Washer C182021312799
16. Bail / Handle Fork C1820Part No Longer Available
17. Screw C182021765140
18. Motor Assembly C1820Part No Longer Available
19. Exhaust Flange Bellow C182038671008
20. Screw C182021447003
21. Clamp Band C182034797008
22. Nut C182015854
23. Duct Boot - Oyster White C182038671005
24. Air Duct - Natural C182038657020
25. Cap Lock Assembly C182041119008
26. Cap - Pewter Transparent C182037257282
27. Air Duct Gasket C182034253013
28. Lock Ring C1820160017
29. Wire Holder C1820045517
30. Spacer C1820Part No Longer Available
31. Bail / Handle Fork Shaft C182032543014
32. Rear Wheel Axle C182032512001
33. Washer C1820163110--
34. Rear Wheel Bearing C1820162143--
35. Rear Wheel - Black C182038522036
36. Exhaust Flange Assembly C182042256106
37. Main Body / Nozzle Base - Right C1820Part No Longer Available
38. Furniture Guard - Short Transparent C182036231154
39. Screw - Self Tapping C182021447215
40. Motor Cushion C182034141005
41. Access Door C182035121001
42. Spring C182038381005
43. Front Wheel C182038522034
44. Bottom Plate / Nozzle Guard C182037245066
45. Agitator Complete C182048416035
46. V-Belt C182038528013
47. Agitator Pulley Gasket C182038781008
48. Height Adjustment Cap - Black C182036436005
49. Front Axle C182032543005
50. Washer C182021312754
51. Bottom Plate / Nozzle Guard C182037245066
52. Furniture Guard C1820Part No Longer Available
53. Lock Nut C18201107602
54. Screw C182021781154
55. Bracket C1820Part No Longer Available
56. Main Body / Nozzle Base - Left C182037241119
57. Screw C1820Part No Longer Available
58. Furniture Guard C1820Part No Longer Available
59. Screw C1820Part No Longer Available
60. Cable Tie C182027479307
61. Shaft Pulley Arm Support C182031534001
62. Lock Ring C1820013730
63. Sandwich Mount C182032724010
64. Motor Support Bracket C182036321006
65. Nut C182021852158
66. Pulley Arm Shaft C182043256007
67. Bearing C182031158008
68. Pulley Assembly C182043256002
69. Belt - Pulley C182038528036
70. Screw - Self Tapping 5/8" C1820214793
71. Mounting Bracket C182036321002
72. Hex Nut C182021652005
73. Screw - Self Tapping 5/8" C1820214793
74. Terminals C1820012227
75. Cord Protector - Black C182036216008
76. Strain Relief C182027478611
77. Foot Lever Support C182035214009
78. Shaft C182032215002
79. Spring C182038335008
80. Handle Release Lever - Black C182043151006
81. Foot Pad C182038426030
82. Terminal - Insulated C1820018972
83. Insulating Pod C1820162961--
84. Switch C182028212009
85. Switch Protector C1820Part No Longer Available
86. Switch Clamp C182036171030
87. Switch Pedal - Black C182038426047
88. Lead Wire - Black C1820Part No Longer Available
89. Cord Assembly C1820Part No Longer Available
90. Nut C182015854
91. Handle Bolt C182021831024
92. Bushing C1820Part No Longer Available

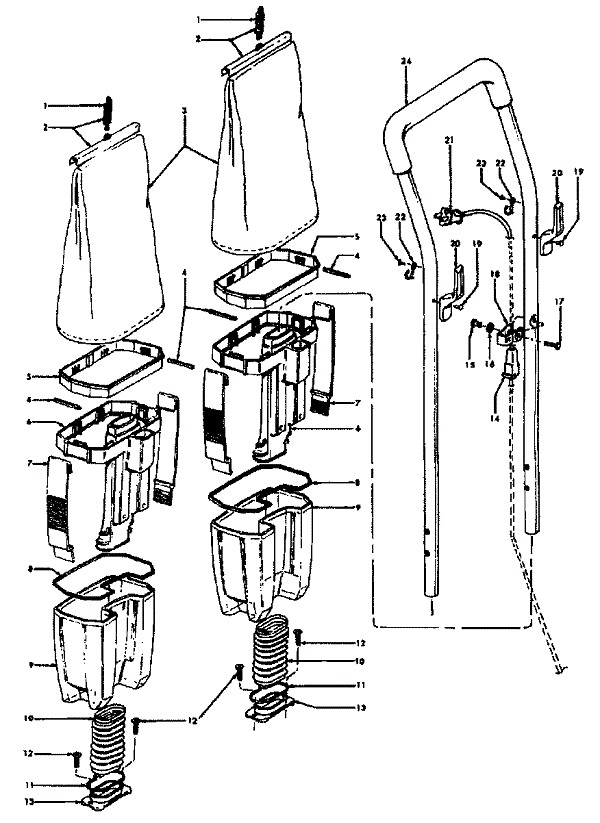

Hoover C1820 Conquest Commercial Upright Bag and Dirt Cup Assembly Parts List & Schematic, Hoover Model C1820 Parts LIst & Schematic
ItemModels To FitPart Number
01. Bag Clip Spring C182038336019
02. Bag Spring / Clip Assembly C182041128016
03. Cloth Bag Assembly - Black C182043667056
03. Lock Ring C1820013759
04. Seal C182034122009
05. Bag Expander C182035173001
06. Cup Support C182041427012
07. Latch - Black C182036155011
08. Gasket C182034123020
09. Dirt Cup C182038775001
10. Bellows - Black C182038673001
11. Nut C182015854
11. Screw C1820017206
11. Clamp Band C1820049044
12. Screw C182036112002
13. Bag Flange C182041424018
14. Cord Protector C182036215025
15. Handle Clamp C182032277008
16. Lock Washer C1820013704
17. Handle Bolt C182021631302
18. Cord Retainer C182034785017
19. Pop Rivet C1820Part No Longer Available
20. Cord Clip - Black C182039441016
21. Power Cord C182046383193
21. Power Cord - Substitution C182091001025
22. Bag Support Hook C1820Part No Longer Available
23. Blind Rivet C1820Part No Longer Available
24. Handle Complete C182048646080

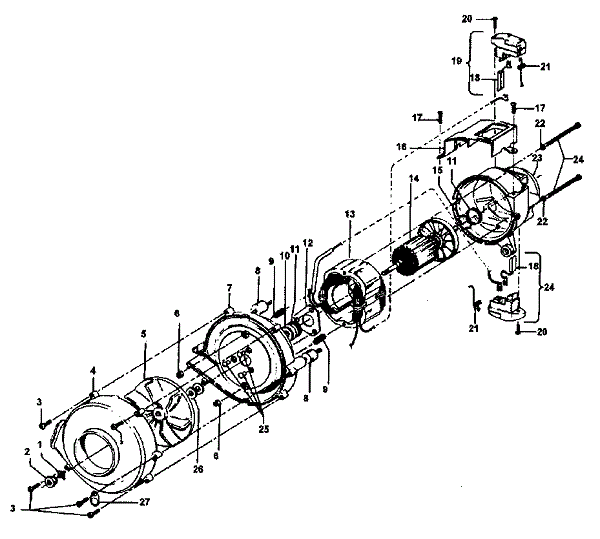

Hoover C1820 Conquest Commercial Upright Motor Assembly Parts List & Schematic, Hoover Model C1820 Parts LIst & Schematic
ItemModels To FitPart Number
01. Lock Washer C1820Part No Longer Available
02. Nut C182033426001
03. Screw C182021447072
04. Fan Chamber Cover C182038736025
05. Fan C182038755012
06. Nut C182021641557
07. Fan Chamber Assembly C182043588018
08. Sandwich Mount C1820Part No Longer Available
09. Spring C1820012854
10. Motor Bearing - 8mm C182024152807
11. Star Ring C182024198001
12. Motor Bearing Retainer C182012025
13. Field Coil - 6.5 C182043574106
14. Armature - 5.2 C182044765184
14. Armature - 6.5 C182043574106
15. Wave Spring Washer C182021345115
16. Air Intake Duct C182037257086
17. Screw C182021447041
18. Brush And Terminal Assembly C182047315010
19. Brush Carrier C182047318008
20. Screw C182021479302
21. Spring C182038353004
22. Lock Washer C182021338006
23. Motor Housing C182037191090
24. Screw C182021563061
25. Rivet C1820012503EF
26. Washer C1820166563--
27. Wire Holder C1820045517

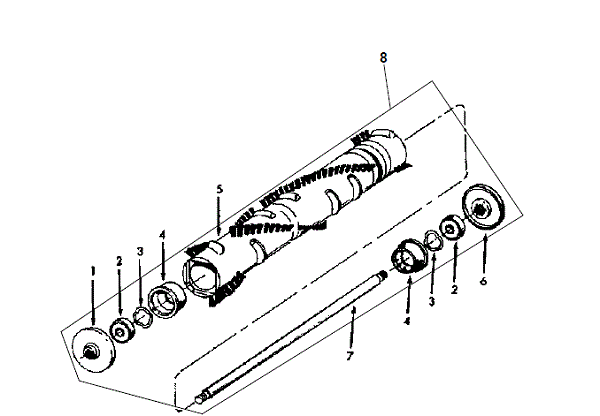

Hoover C1820 Conquest Commercial Upright Agitator Assembly Parts List & Schematic, Hoover Model C1820 Parts LIst & Schematic
ItemModels To FitPart Number
01. Thread Guard Assembly C182041435066
02. Motor Bearing - 8mm C182024152807
03. Wave Spring Washer C182021345113
04. Agitator End C182036422004
05. Agitator Assembly - 14" C182048416035
05. Agitator Assembly - 18" C182048416036
06. Thread Guard Assembly C182041435061
07. Agitator Shaft - 18" C182032873004
07. Agitator Shaft - 14" C182032873007
07. Agitator Complete - 14" C182048416035
07. Agitator Complete - 18" C182048416036
