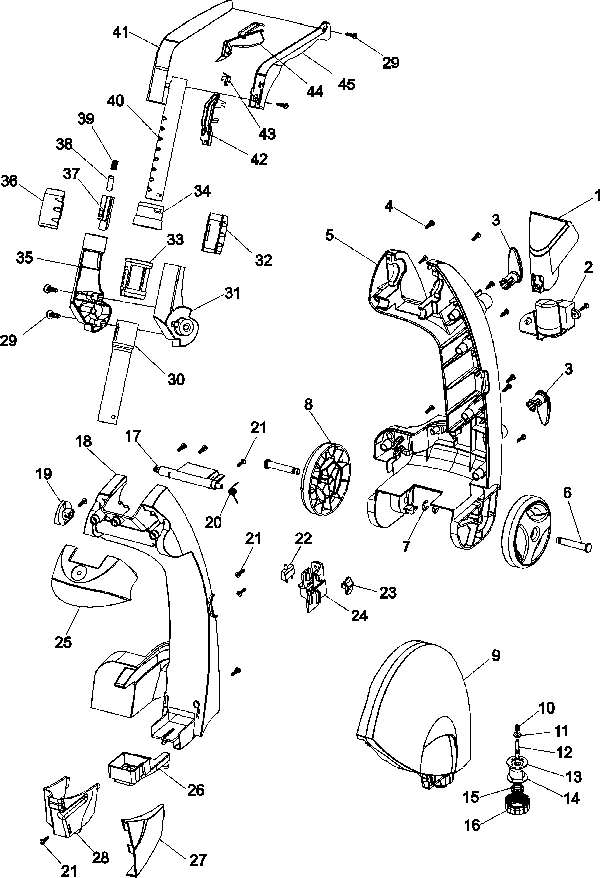

Hoover F5515 SteamVac Spot Upright Extractor Parts List & Schematic
ItemPart Number
1. Upholstery Nozzle Assembly 93001408
2. Tool Holder Part No Longer Available
3. Cord Dump 93001508
4. Screw 93001425
5. Lower Handle - Rear 93001370
6. Axle 93001385
7. E Clip 93001386
8. Wheel 93001384
9. Solution Tank Assembly 93001800
10. Spring - Solution Tank 93001377
11. Seal - Solution Tank 93001376
12. Poppet - Solution Tank 93001378
13. Valve Base Seal Part No Longer Available
14. Solution Tank Valve Base Part No Longer Available
15. O Ring CapSeal 93001379
16. Cap - Solution Tank 93001375
17. Release Lever Lock Part No Longer Available
18. Lower Handle - Front 93001369
19. Release Lever - Folding Handle Part No Longer Available
20. Spring Part No Longer Available
21. Screw 93001425
22. Agitator Motor Circuit Breaker 93001382
23. Switch Button 93001381
24. On / Off Switch Assembly 93001380
25. Carry Handle Part No Longer Available
26. Reservoir Assembly Part No Longer Available
27. Solution Tank Shelf - Front 93001803
28. Solution Tank Shelf - Rear 93001804
29. Screw 93001425
30. Lower Tube - Telescoping Handle Part No Longer Available
31. Mount - TelescopingHandle - Lh 93001388
32. Clutch Housing Rear 93001399
33. Bushing - Lower Telescoping Tube Part No Longer Available
34. Bushing- UpperTelescoping Tube 93001392
35. Mount-TelescopingHandle - Rh 93001389
36. Clutch Housing - Front 93001398
37. Tube Lock 93001394
38. Clutch Slide 93001509
39. Spring 93001395
40. Upper Tube - Telescoping Handle 93001391
41. Grip - Lh 93001402
42. Switch And Trigger Support 93001401
43. Microswitch - Valve Part No Longer Available
44. Trigger 93001404
45. Grip - Rh 93001403

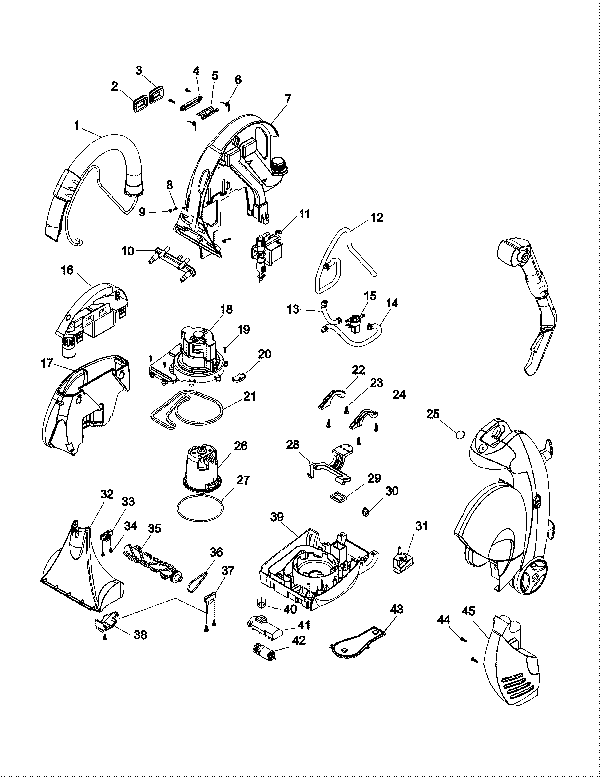

Hoover F5515 SteamVac Spot Upright Extractor Parts List & Schematic
ItemPart Number
1. Hose Assembly 93001349
2. Recovery Tank Outlet Seal With Screen 93001357
3. Recovery Tank Inlet Seal 93001356
4. Recovery Tank Latch Retainer 93001420
4. Screw Part No Longer Available
5. Recovery Tank Latch 93001418
6. Spring 93001419
7. Spine Assembly 93001433
8. Screw Part No Longer Available
9. Washer 93001430
10. Floor Nozzle Spray Jet Assembly Part No Longer Available
11. Pump - Solenoid 93001355
12. Tubing 93001502
12. Tubing Clamp 93001506
13. Tubing 93001503
13. Tubing Clamp 93001505
13. Tubing Clamp 93001506
14. Tubing Clamp 93001506
14. Tubing 93001504
15. SoleniodValve - FluidPressure 93001363
16. Recovery Tank Buckle 93001407
16. Recovery Tank Lid Assembly 93001802
17. Recovery Tank Assembly 93001801
18. Motor Cover Part No Longer Available
19. Screw Part No Longer Available
20. Slide Seal Part No Longer Available
21. Motor Cover Seal 93001368
22. Trunnion Cover - Rh 93001360
23. Screw 93001425
24. Trunnion Cover - Lh 93001361
25. Hoover Emblem 93001429
26. Motor Fan Assembly 93001365
27. Motor Seal(O Ring) 93001507
28. Handle Release Pedal 93001362
29. Recovery Duct - Main Body Seal 93001358
30. Cord Retainer 93001428
31. Handle Upright Switch Assembly 93001414
32. Floor Nozzle Assembly 93001799
33. Non Belt Side Support 93001346
34. Screw - Agitator Support Part No Longer Available
35. Agitator Assembly 93001344
36. Agitator Timing Belt 93001347
37. Belt Side Bushing 93001345
38. Agitator Belt Cover 93001348
39. Screw - Agitator Support Part No Longer Available
39. Main Body & Duct Cover 93001342
40. Rectifier 93001367
41. Cover - Agitator Motor Part No Longer Available
41. Screw Part No Longer Available
42. Handle Release Pedal 93001362
43. Air Duct Cover Part No Longer Available
44. Screw 93001425
45. Side Cover Part No Longer Available
46. OwnerManual Part No Longer Available
46. Solution Tubing Assembly 93001409
47. Powered Hand Tool 93001436
48. Spot / Stain Shampoo - 16 Oz 40322016
48. PetStain / Odor Shampoo - 32 Oz 40325032
