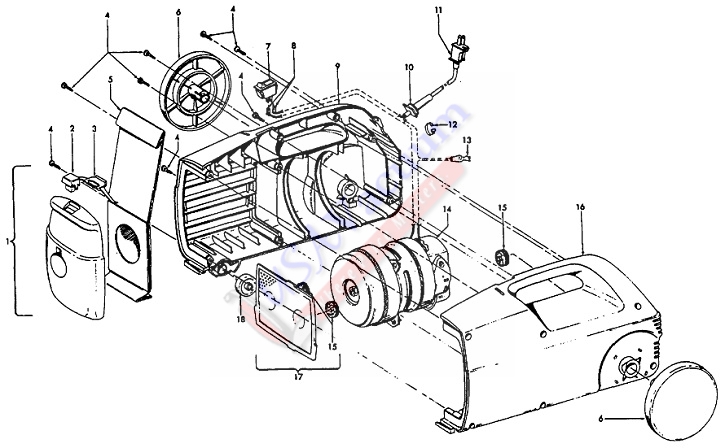

Hoover S1221 Sprint / Hornet Canister Vacuum Parts List & Schematic
Item Part Number
1. Bag Door Part No Longer Available
1. Bag Door - S1215, S1223 42227176
1. Bag Door - S1221, S1410 42227179
2. Latch Button 38426088
2. Latch Button 38426090
3. Latch Part No Longer Available
4. Screw - Self Tapping (8) 21447122
5. Disposable Bag 4010063R
6. Wheel Part No Longer Available
7. Switch 28161063
8. Terminal - S1410 27666553
8. Terminal (Black Switch) 27666513
8. Terminal (Gray Switch) 27666527
9. Housing Assembly - Rh/Lh 42222173
9. Housing Assembly - Rh/Lh - S1223 42222172
9. Housing Assembly - Rh/Lh - S1215 42222177
9. Housing Assembly - Rh/Lh - S1221 42212129
9. Housing Assembly - Rh/Lh - S1410 42222179
10. Cord Protector 36216020
10. Cord Protector 36216021
11. Attachment Cord 46363043
11. Attachment Cord 46363307
12. Lead Wire Tie 27479307
13. Insulated Terminal 12227
Wire Connector - S1410 27618508
14. Motor Assembly 43177061
14. Motor Assembly - S1215, S122 43578068
15. Pressure Pad (3) 163434
16. Housing Assembly - Rh/Lh 42222173
16. Housing Assembly - Rh/Lh - S1223 42222172
16. Housing Assembly - Rh/Lh - S1215 42222177
16. Housing Assembly - Rh/Lh - S1221 42212129
16. Housing Assembly - Rh/Lh - S1410 42222179
17. Bulkhead 43615054
18. Wheel Part No Longer Available
Crevice Tool - S1211, S1215 38617017
Furniture Brush - S1211, S1215 OM114169
Rug & Floor Nozzle - S1211, S1215 Part No Longer Available
Extension Tube - Poly - S1211, S1215 3863801P
Hose Assembly Complete - S1211, S1215 43434157
Crevice Tool - S1223 38617017
Furniture Nozzle - S1223 38614024
Dusting Brush - S1223 43414064
Rug & Floor Nozzle - S1223 OM114169
Extension Tube - Poly - S1223 3863801P
Hose Assembly Complete - S1223 43434243
Crevice Tool - S1221 38617017
Multi Purpose Brush - S1221 Part No Longer Available
Extension Tube Assembly - S1221 3863801P
Rug And Floor Nozzle - S1221 OM114169
Hose Assembly Complete - S1221 43434157
Crevice Tool - S1410 38617017
Extension Tube - S1410 3863801P
Multi Purpose Brush - S1410 Part No Longer Available
Rug & Floor Nozzle - S1410 43414172
Hose Assembly Complete - S1410 43434157

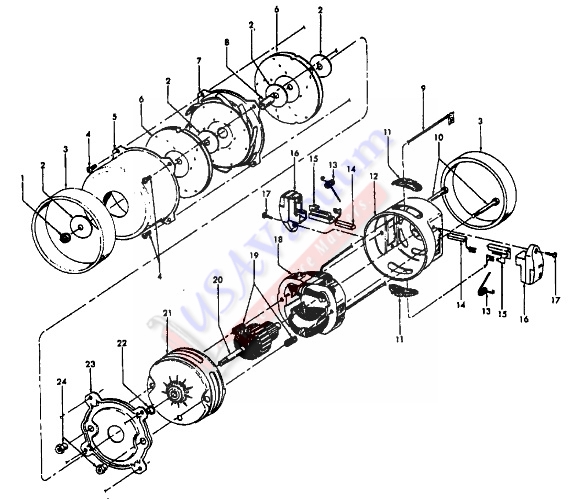

Hoover S1221 Sprint / Hornet Canister Vacuum Parts List & Schematic
Item Part Number
Motor Assembly Complete - S1215, S1223 43578068
Motor Assembly Complete - S1211, S1221, S1410 43177061
1. Nut 33426001
2. Washer (4) Part No Longer Available
3. Motor Gasket (2) 31178007
4. Screw - Self Tapping (4) Part No Longer Available
5. Outer Stage Housing Part No Longer Available
6. Fan Assembly (2) Part No Longer Available
7. Lnterstage Assembly Part No Longer Available
8. Fan Spacer 31742010
9. Lead Wire - Black 46176001
10. Field Lamination Bolt (2) Part No Longer Available
11. Bushing (2) Part No Longer Available
12. Motor Housing - Upper 42937003
13. Spring (2) 38353004
14. Brush & Terminal (2) Part No Longer Available
15. Brush Holder (Use Brush Carrier Assembly 47318008 - Includes Ltems 13 -16) Part No Longer Available
16. Brush Carrier (2) 167696AG
17. Screw - Self Tapping (2) 21429406
18. Field Assembly - S1215, S1223 45311051
18. Field Assembly - S1211, S1221, S1410 45311061
19. Compression Spring (2)- S1215, S1223 Part No Longer Available
19. Compression Spring (2)- S1211, S1221, S1410 38311023
20. Armature Assembly - S1215, S1223 44765171
20. Armature Assembly - S1211, S1221, S1410 44765217
21. Motor Housing - Lower 37191085
22. Spacer 31148002
23. Lnterstage Mounting Plate 36322002
24. Nut - Special (2) 167695EF

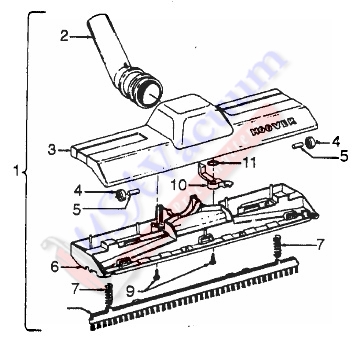

Hoover S1221 Sprint / Hornet Canister Vacuum Parts List & Schematic
Item Part Number
1. Standard Rug & Floor Nozzle Assembly 43414121
1. Standard Rug & Floor Nozzle Assembly 43414139
1. Standard Rug & Floor Nozzle Assembly - S3393-020, S3521 43414140
1. Standard Rug & Floor Nozzle Assembly - S1221, S1315, S1337, S3393-040 OM114169
1. Standard Rug & Floor Nozzle Assembly - S1339, S3547 Part No Longer Available
2. Standard Rug & Floor Nozzle Assembly 43414172
3. Nozzle Tube - Ag 38646039
3. Rug & Floor Nozzle 38615153
4. Rug & Floor Nozzle - S3393-020, S3521, S1339, S3547, S1221, S1315, S1337 38615182
5. Roller (2) (Nozzle 43414172 Requires 4) 38521018
6. Roller Axle (2) (Nozzle 43414172 Requires 4) Part No Longer Available
7. Brush Housing - S1221, S1315, S1337 Part No Longer Available
8. Spring (2) 166649FW
Brush Back Assembly 48443003
9. Screw - Selftapping (2) 21447203
10. Brush Back Lever Part No Longer Available
11. Brush Back Lever - S3393-020, S3521, S1221, S1339, S3547 38454006
Felt Washer 21329105

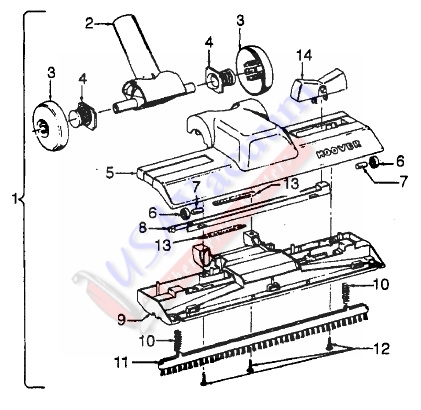

Hoover S1221 Sprint / Hornet Canister Vacuum Parts List & Schematic
Item Part Number
1. Deluxe Rug & Floor Nozzle Assembly 43414101
2. Nozzle Connector 38646045
3. Wheel & Bearing Assembly (2) 43244043
4. Wheel Bearing (2) 38511016
5. Rug & Floor Nozzle 38615180
6. Roller (2) 38521018
7. Roller Axle (2) Part No Longer Available
8. Slider 38451008
9. Brush Housing 36414013
10. Spring (2) 166649FW
11. Brush Back Assembly - Ag Part No Longer Available
12. Screw - Self Tapping (3) 21447203
13. Seal (2) Part No Longer Available
14. Pedal 38434015
