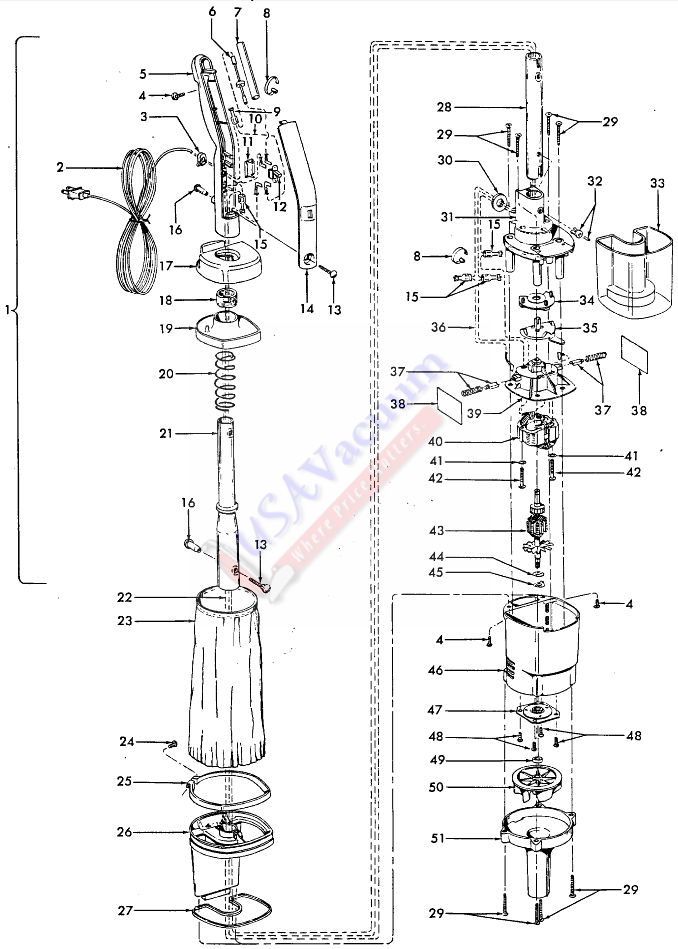

Hoover S2131 Quik-Broom II Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Handle Assembly - Upper Half - Molded 48655230
1. Handle Assembly - Upper Half - Metal 48655215
2. Attachment Cord - AAP 46363137
3. Strain Relief Bushing - S2103 Part No Longer Available
3. Strain Relief Bushing - S2131 27482141
4. Screw - Self Tapping (4) 21447003
5. Handle Grip 39454006
6. Diode Assembly 47831007
7. Tubing - JM 31744023
8. Lead Wire Tie (2) 27479307
9. Insulated Terminal (5) 12227
10. Black Lead Wire 46143064
11. Terminal Shield Part No Longer Available
12. Switch Part No Longer Available
13. Handle Bolt - AW/AY 21631302
14. Handle Cover 37226079
15. Insulated Terminal (5) 12227
16. Handle Nut - AW/AY (2) 32277021
17. Bag Cap Outer - AAP 37225008
18. Gasket Part No Longer Available
19. Bag Cap Inner - BZ 37225010
20. Spring Compression 38315012
21. Handle - Upper Half - Molded Part No Longer Available
21. Handle - Upper Half - Metal (Includes Spiral Pin) 48631138
22. Motor Lead Wire Assembly Complete 46513006
23. Bag Assembly - S2103 43662032
23. Bag Assembly - ABN - S2131 43662025
24. Screw - Self Tapping (5) 21434288
25. Clamp Band - AAP 36171046
26. Bag Support Assembly - NAA - S2103 Part No Longer Available
26. Bag Support Assembly - ABN - S2131 42223167
27. Gasket Part No Longer Available
28. Handle - Lower Half - Molded 32355012
28. Handle - Lower Half - Metal 31756023
29. Screw - Self Tapping - FW (8) 21434287
30. Washer - Fiber 21329104
31. Motor Cover - NAA - S2103 37196098
31. Motor Cover - AG - S2131 37196103
32. Plastic Rivet - Use with Metal Tube Part No Longer Available
32. Plastic Rivet - Use with Molded Tube Part No Longer Available
33. Dirt Cup Part No Longer Available
34. Cam - MV Part No Longer Available
35. Lever Part No Longer Available
36. White Lead Wire Part No Longer Available
37. Motor Brush & Spring Assembly Part No Longer Available
38. Insulator (2) 34152010
39. Motor Brush Housing Assembly - AG 42196005
40. Field - S2103, S2131 (Before S/N 0793-63886) 45312098
40. Field - S2131 (After S/N 0793-63886) 45317036
41. Lockwasher (2) 21338030
42. Screw (2) - S2103, S2131 (Before S/N 0793-63886) 21479439
42. Screw (2) - S2131 (After S/N 0793-63886) 21479438
43. Armature Assembly Kit - S2103, S2131 (Before S/N 0793-63886) (Includes Items 44, 45, 47) 44731074
43. Armature - S2131 (After S/N 0793-63886) 44731073
44. C-Clip with Flat Part No Longer Available
44. C-Clip (All Early Models) 21378010
45. C-Clip Retainer with tabs 21378013
45. C-Clip Retainer (All Early Models) 21378011
46. Motor Housing - NAA - S2103 37193010
46. Motor Housing - ABN - S2131 37193013
47. Bearing Plate Assembly (Early Models) 42193022
47. Bearing Plate Assembly Part No Longer Available
48. Screw - Self Tapping (4) 21434288
48. Spacer 31146008
50. Fan - AG Part No Longer Available
51. Fan Cover - JM - 82103 Part No Longer Available
51. Fan Cover - ABN - S2131 Part No Longer Available
Housing Gasket 38784043
Handle Separator - Use with Metal Handle 34264004
Spiral Pin - Used with Metal Handle 21157003
Hoover S2131 Quik-Broom II Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Rug & Floor Nozzle - S2095, S2097, S2103, S2131, S2135 43414180
2. Nozzle Tube - S2095, S2097, S2103, S2131, S2135 38646078
3. Rug & Floor Nozzle - S2095, S2097, S2103, S2131, S2135 38615153
4. Roller (2) - S2095, S2097, S2103, S2131, S2135 38521018
5. Roller Axle (2) - S2095, S2097, S2103, S2131, S2135 Part No Longer Available
6. Brush Housing - S2095, S2097, S2103, S2131, S2135 Part No Longer Available
7. Spring (2) - S2095, S2097, S2103, S2131, S2135 166649FW
8. Brush Back Assembly - S2095, S2097, S2103, S2131, S2135 48443003
9. Screw - Self Tapping (2) - S2095, S2097, S2103, S2131, S2135 21447203
10. Brush Back Lever - S2095, S2097, S2103, S2131, S2135 Part No Longer Available
11. Felt Washer - S2095, S2097, S2103, S2131, S2135 21329105
Hoover S2131 Quik-Broom II Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Deluxe Rug & Floor Nozzle Assembly - S2099 43414161
2. Nozzle Connector - S2099 38646071
3. Wheel & Bearing Assembly (2) - S2099 43244043
4. Wheel Bearing (2) - S2099 38511016
5. Rug & Floor Nozzle - S2099 38615180
6. Roller (2) - S2099 38521018
7. Roller Axle (2) - S2099 Part No Longer Available
8. Slider - S2099 38451008
9. Brush Housing - S2099 36414013
10. Spring (2) - S2099 166649FW
11. Brush Back Assembly - S2099 Part No Longer Available
12. Screw - Self Tapping (3) - S2099 21447203
13. Seal (2) - S2099 Part No Longer Available
14. Pedal - S2099 38434015
