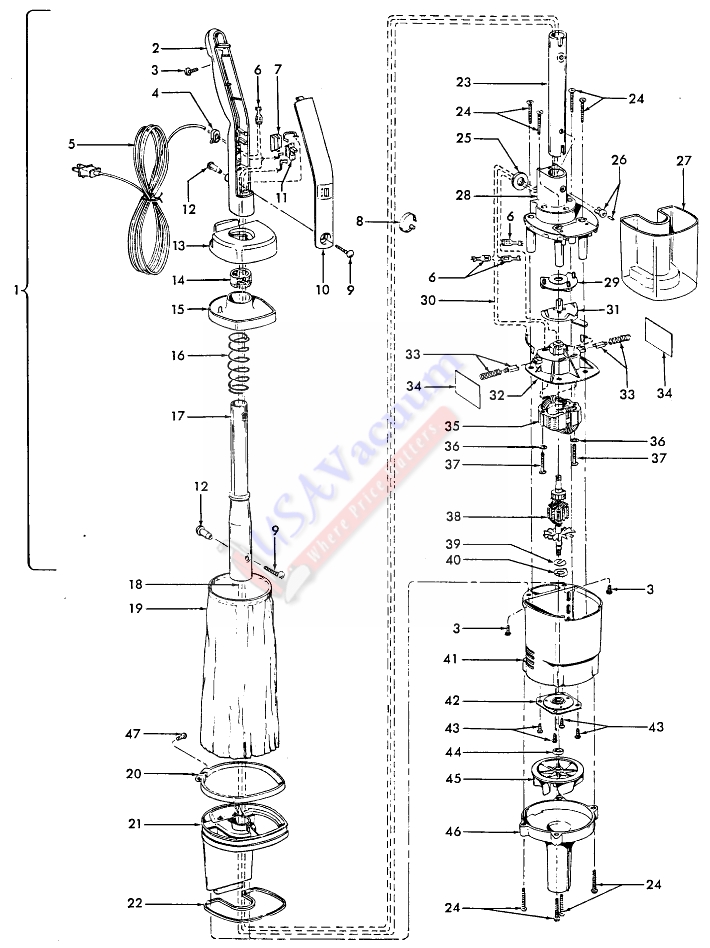

Hoover S2135 Quik-Broom II Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Handle Assembly - Upper Half - Molded 48655231
1. Handle Assembly - Upper Half - Metal 48655216
2. Handle Grip 39454006
3. Screw - Self Tapping (4) 21447003
4. Strain Relief Bushing Part No Longer Available
5. Attachment Cord Assembly - JM 46363148
6. Insulated Terminal (4) 12227
7. Terminal Shield Part No Longer Available
8. Lead Wire Tie 27479307
9. Handle Bolt - AW/AY 21631302
10. Handle Cover 37226063
11. Switch 28179022
12. Handle Nut - AW/AY 32277021
13. Bag Cap Outer - AAP 37225008
14. Gasket Part No Longer Available
15. Bag Cap Inner - BZ 37225010
16. Spring Compression 38315012
17. Handle - Upper Half - Molded Part No Longer Available
17. Handle - Upper Half - Metal (Incldues Spiral Pin) 48631138
18. Motor Lead Wire Assembly 46513006
19. Bag Assembly - S2097 43662032
19. Bag Assembly - ABP - S2135 43662027
20. Clamp Band - AAP 36171046
21. Bag Support Assembly - NAA - S2097 Part No Longer Available
21. Bag Support Assembly - ABP - S2135 42223168
22. Gasket Part No Longer Available
23. Handle - Lower Half - Metal 31756023
23. Handle - Lower Half - Molded 32355012
24. Screw - Self Tapping - FW (8) 21434287
25. Washer - Fiber 21329104
26. Plastic Rivet - Use with Metal Tube Part No Longer Available
26. Plastic Rivet - Use with Molded Tube Part No Longer Available
27. Dirt Cup Part No Longer Available
28. Motor Cover - NAA - S2097 37196098
28. Motor Cover - AG - S2135 37196103
29. Cam - MV Part No Longer Available
30. Lead Wire Part No Longer Available
31. Lever Part No Longer Available
32. Motor Brush Housing Assembly - AG 42196005
33. Motor Brush & Spring Assembly (2) Part No Longer Available
34. Insulator (2) 34152010
35. Field - S2097, S2135 (Before S/N 0993-57501) 45312098
35. Field - S2135 (After S/N 0993-57501) 45317036
36. Lockwasher (2) 21338030
37. Screw - S2097, S2135 (Before S/N 0993-57501) 21479439
37. Screw - S2135 (After S/N 0993-57501) 21479438
38. Armature Assembly Kit - S2097, S2135 (Before S/N 0993-57501) (Includes Items 30, 40, 42) 44731074
38. Armature Assembly Complete - S2135 After S/N 0993 - 57501 44731073
39. C-Clip with Flat Part No Longer Available
39. C-Clip (All Early Models) 21378010
40. C-Clip Retainer with Tabs 21378013
40. C-Clip Retainer (All Early Models) 21378011
41. Motor Housing - JM - S2097 37193010
41. Motor Housing - ABP - S2135 37193021
42. Bearing Plate Assembly (Early Models) 42193022
42. Bearing Plate Assembly Part No Longer Available
43. Screw - Self Tapping (5) 21434288
44. Spacer 31146008
45. Fan - AG Part No Longer Available
46. Fan Cover - JM - S2097 Part No Longer Available
46. Fan Cover - ABP - S2135 37196104
47. Screw - Self Tapping (5) 21434288
Housing Gasket (Used on some early models between item 41 and 46) 38784043
Handle Separator - Use with Metal Handle 34264004
Spiral Pin - Used with Metal Handle 21157003
Rug & Floor Nozzle - Standard 43414180
Hoover S2135 Quik-Broom II Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Rug & Floor Nozzle - S2095, S2097, S2103, S2131, S2135 43414180
2. Nozzle Tube - S2095, S2097, S2103, S2131, S2135 38646078
3. Rug & Floor Nozzle - S2095, S2097, S2103, S2131, S2135 38615153
4. Roller (2) - S2095, S2097, S2103, S2131, S2135 38521018
5. Roller Axle (2) - S2095, S2097, S2103, S2131, S2135 Part No Longer Available
6. Brush Housing - S2095, S2097, S2103, S2131, S2135 Part No Longer Available
7. Spring (2) - S2095, S2097, S2103, S2131, S2135 166649FW
8. Brush Back Assembly - S2095, S2097, S2103, S2131, S2135 48443003
9. Screw - Self Tapping (2) - S2095, S2097, S2103, S2131, S2135 21447203
10. Brush Back Lever - S2095, S2097, S2103, S2131, S2135 Part No Longer Available
11. Felt Washer - S2095, S2097, S2103, S2131, S2135 21329105

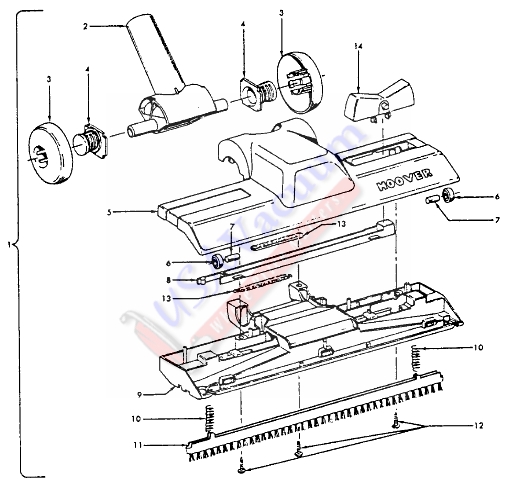

Hoover S2135 Quik-Broom II Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Deluxe Rug & Floor Nozzle Assembly - S2099 43414161
2. Nozzle Connector - S2099 38646071
3. Wheel & Bearing Assembly (2) - S2099 43244043
4. Wheel Bearing (2) - S2099 38511016
5. Rug & Floor Nozzle - S2099 38615180
6. Roller (2) - S2099 38521018
7. Roller Axle (2) - S2099 Part No Longer Available
8. Slider - S2099 38451008
9. Brush Housing - S2099 36414013
10. Spring (2) - S2099 166649FW
11. Brush Back Assembly - S2099 Part No Longer Available
12. Screw - Self Tapping (3) - S2099 21447203
13. Seal (2) - S2099 Part No Longer Available
14. Pedal - S2099 38434015
