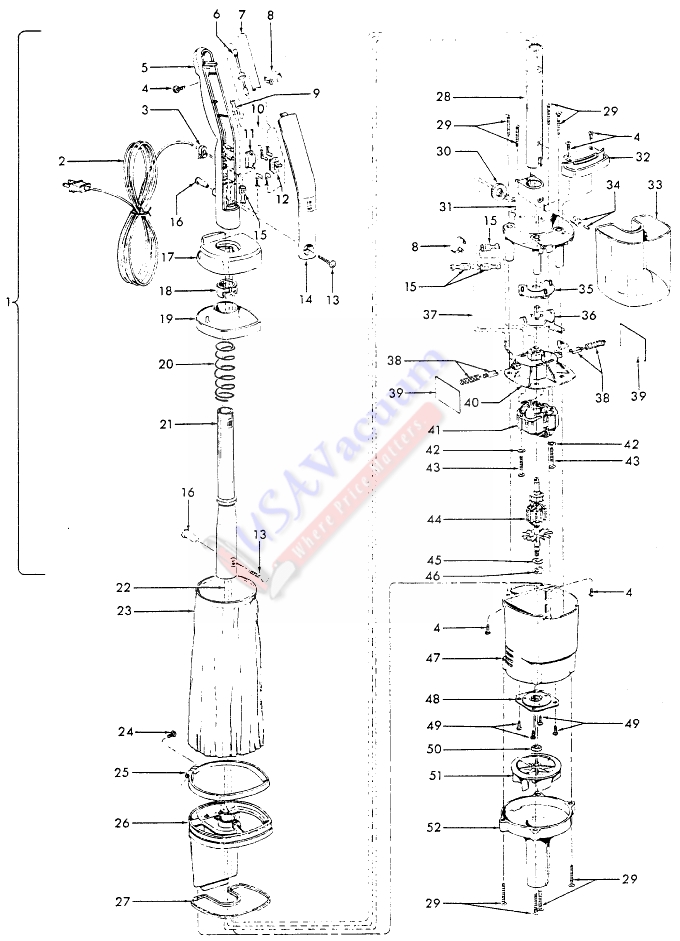

Hoover S2155 Quik-Broom II Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Upper Handle Assembly Part No Longer Available
2. Attachment Cord - MV 46363154
3. Strain Relief Bushing Part No Longer Available
4. Screw - Self Tapping (5) 21447003
5. Handle Grip - ABU 39454065
6. Diode Assembly 47831007
7. Tubing - JM 31744023
8. Lead Wire Tie 27479307
9. Insulated Terminal 12227
10. Lead Wire 46143064
11. Terminal Shield Part No Longer Available
12. Switch Part No Longer Available
13. Handle Bolt - AW/AY (2) 21631302
14. Handle Cover - ABU 37226080
15. Insulated Terminal 12227
16. Handle Nut - AW/AY (2) 32277021
17. Bag Cap - Outer - ABE 37225016
18. Gasket Part No Longer Available
19. Bag Cap - Inner - HE 37225010
20. Spring - Compression 38315014
21. Handle Tube - Upper 32458006
22. Motor Lead Wire Assembly 46513006
23. Bag Assembly 43662033
24. Screw 21447218
25. Clamp Band - ABE 36171046
26. Bag Support Assembly - MB (Includes Items 24, 25, 27) 42223177
27. Gasket Part No Longer Available
28. Handle Tube - Lower - ABU 32355014
29. Screw - Self Tapping - FW (8) 21434287
30. Washer - Fiber 21329104
31. Motor Cover - AG 37196103
32. Carrying Handle - ABR 39466024
33. Dirt Cup Part No Longer Available
34. Plastic Rivet Part No Longer Available
35. Cam - AG Part No Longer Available
36. Lever - ABN Part No Longer Available
37. Lead Wire Part No Longer Available
38. Motor Brush & Spring Assembly (2) Part No Longer Available
39. Insulator (2) 34152010
40. Motor Brush Housing Assembly 42196005
41. Field Assembly 45317036
42. Lockwasher (2) 21338030
43. Screw (2) 21479438
44. Armature Assembly 44731073
45. C-Clip Part No Longer Available
46. C-Clip Retainer 21378013
47. Motor Housing - MB 37193019
48. Bearing Plate Assembly Part No Longer Available
49. Screw - Self Tapping (4) 21447218
50. Spacer 31146008
51. Fan - HE Part No Longer Available
52. Fan Cover - MB Part No Longer Available
Deluxe Rug & Floor Nozzle 43414180
Hoover S2155 Quik-Broom II Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Standard Rug & Floor Nozzle - ABE (Use Deluxe Rug & Floor Nozzle 43414180) - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 43414180
2. Nozzle Tube - ABE - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 38646078
3. Rug & Floor Nozzle - ABE - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 38615182
4. Roller (2) - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 38521018
5. Roller Axle - AY (2) - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 Part No Longer Available
6. Brush Housing - MV - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 Part No Longer Available
7. Spring (2) - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 166649FW
8. Brush Back Assembly - AG - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 48443003
9. Screw - Self Tapping (2) - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 21447203
10. Brush Back Lever - MV - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 Part No Longer Available
Hoover S2139 Quik-Broom II Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Deluxe Rug & Floor Nozzle Assembly - ABE - - S2155, S2543, S2545, S2561, S2571 43414180
1. Deluxe Rug & Floor Nozzle Assembly - ADJ - S2571 43414182
2. Nozzle Connector - ABE - S2155, S2543, S2545, S2561, S2571 38646071
2. Nozzle Connector - AG - S2571 38646082
3. Wheel & Bearing Assembly (2) - ABR - S2155, S2543, S2545, S2561, S2571 43244043
4. Included with ltem 3 Part No Longer Available
5. Pedal - ABN - S2155, S2543, S2545, S2561, S2571 38434019
5. Pedal - AG - S2571 38434022
6. Roller (2) - S2155, S2543, S2545, S2561, S2571 38521018
7. Roller Axle - AY (2) - S2155, S2543, S2545, S2561, S2571 Part No Longer Available
8. Slider - AG - S2155, S2543, S2545, S2561, S2571 38451008
9. Seal (2) - S2155, S2543, S2545, S2561, S2571 Part No Longer Available
10. Spring (2) - S2155, S2543, S2545, S2561, S2571 166649FW
11. Brush Back Assembly - AG - S2155, S2543, S2545, S2561, S2571 Part No Longer Available
12. Screw - Self Tapping (2) - S2155, S2543, S2545, S2561, S2571 21447203
13. Skid Plate - ABR - S2155, S2543, S2545, S2561, S2571 36434005
13. Skid Plate - AG - S2571 36434006
14. Screw - Self Tapping (2) - S2155, S2543, S2545, S2561, S2571 21447020
15. Screw - Self Tapping - S2155, S2543, S2545, S2561, S2571 21447203
16. Brush Housing - ABR - S2155, S2543, S2545, S2561, S2571 36414019
16. Brush Housing - AG - S2571 36414023
17. Rug & Floor Nozzle - ABE - S2155, S2543, S2545, S2561, S2571 43414157
17. Rug & Floor Nozzle - ADJ - S2571 43414185
