Hoover S2610 Quik Broom Vacuum Parts List & Schematic

You are here: Home > HOOVER > HOOVER PARTS & SCHEMATICS BY MODEL > Stick & Canister Vacuum Parts (S Series)
> S2610 - Quik Broom

We found 0 results matching your criteria.

Item	Part Number
1. Handle	39454061
2. Wire Tie	27479307
3. Air Intake Door	37227002
4. Receptacle Assem.	46326005
5. Switch	28161063
6. Front Housing - ACF	37222023
7. Hose Wrap	39442045
8. Filter / Separator Assembly	43615087
9. Screw	21447236
10. Dirt Cup - (Includes Item 11)	Part No Longer Available
11. Latch - AG	Part No Longer Available
12. Nut	21642021
13. Washer	21312818
14. Seal	38783022
15. Fan Assembly	43566012
15. Fan Assembly	43566019
16. Motor Support Seal	34123048
17. Motor Housing Assembly	42193024
18. Spacer	31148011
19. Armature Assembly	44731085
20. Field Assembly (Includes Item 24)	45312072
21. Motor Mount Insulator	31195005
22. Motor Brush Housing	37193026
23. Spring (2)	38353014
24. Motor Brush Assembly (Includes 2 Brushes and 2 Crimps)	Part No Longer Available
25. Washer	21329108
26. Motor Bearing	24118214
27. Bearing Retainer	36134006
28. Screw	214793DA
29. Screw	21479443
30. Wire Connector	27618508
31. Rear Housing - ABE (Includes Item 14)	37222016
32. Screw	21447236
33. Attachment Cord	46363110
34. Screw (3)	21447072
35. Hose Assembly	Part No Longer Available
36. Tool Holder	36433119
37. Spring	38351018
38. Screw	21447124
39. Air Intake Door	37227002
Secondary Filter	38765021
Retainer Clip (Used to Secure Receptacle Assembly - Item 4)	34341011
Owners Manual	56512178
Carton	58134040
Cleaner Support	58364018

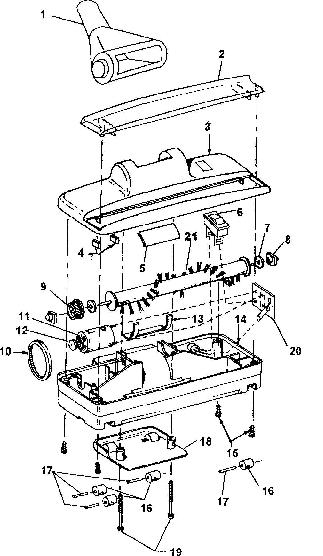

Item	Part Number
Power Nozzle	48438131
1. Nozzle Connector	59139300
2. Agitator Housing Lens	59139259
Foam Seal Lens	59139260
3. Agitator Housing
4. Rubber Block
5. Seal	59139244
6. Switch	Part No Longer Available
7. Washer
8. Agitator Bearing	59139228
9. Pulley
10. Belt	59139232
11. Agitator Motor	59139230
12. Motor Pulley	59139275
13. Seal	59139245
14. Bottom Plate
15. Screw	59139209
16. Roller	59139233
17. Roller Shaft	Part No Longer Available
18. Bottom Cover
19. Screw
20. Circuit Board with Attachment Cord	Part No Longer Available
21. Agitator Assembly	59139227
Cord Strap	59139294
Torx Driver (Used to remove item 19 Screw)	171078
