You are here: Home > HOOVER > HOOVER PARTS & SCHEMATICS BY MODEL > Stick & Canister Vacuum Parts (S Series)
 > S2610 - Quik-Broom with Power Nozzle and Tools
We found 43 results matching your criteria.

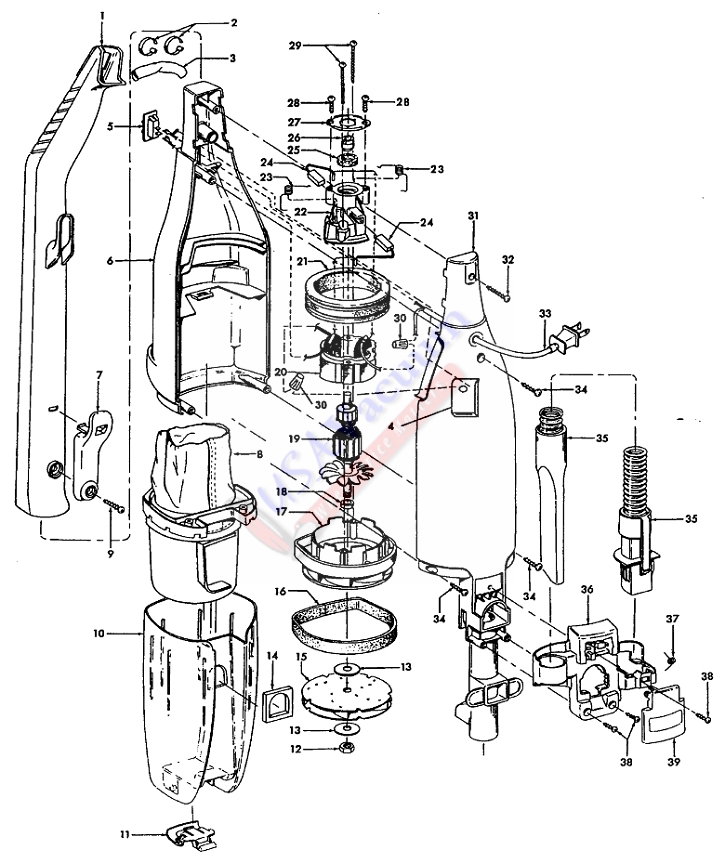

Hoover S2610 Quik-Broom with Power Nozzle and Tools Parts List & Schematic
ItemModels To FitPart Number
1. Handle S261039454061
2. Wire Tie S261027479307
3. Air Intake Door S2610Part No Longer Available
4. Receptacle Assembly S261046326005
5. Switch S261028161063
6. Front Housing - ACF S261037222023
7. Hose Wrap S261039442045
8. Filter I Separator Assembly S2610Part No Longer Available
9. Screw S261021447236
10. Dirt Cup (Includes Item 11) S2610Part No Longer Available
11. Latch- AG S2610Part No Longer Available
12. Nut S261021642021
13. Washer S261021312818
14. Seal S261038783022
15. Fan Assembly S261043566012
15. Fan Assembly S261043566019
16. Motor Support Seal S261034123048
17. Motor Housing Assembly S261042193024
18. Spacer S261031148011
19. Armature Assembly S261044731085
20. Field Assembly (Includes Item 24) S261045312072
21. Motor Mount Insulator S261031195005
22. Motor Brush Housing S261037193026
23. Spring (2) S261038353014
24. Motor Brush Assembly (Includes 2 Brushes and 2 Crimps) S261047313010
25. Washer S261021329108
26. Motor Bearing S2610Part No Longer Available
27. Bearing Retainer S261036134006
28. Screw S2610214793DA
29. Screw S261021479443
30. Wire Connector S261027618508
31. Rear Housing- ABE (Includes Item 14) S261037222016
32. Screw S261021447236
33. Attachment Cord S261046363110
34. Screw (3) S261021447072
35. Hose Assembly S2610Part No Longer Available
36. Tool Holder S2610Part No Longer Available
37. Spring S261038351018
38. Screw S261021447124
39. Air Intake Door S2610Part No Longer Available
Secondary Filter S261038765021
Retainer Clip (Used to Secure Receptacle Assembly - Item 4) S261034341011

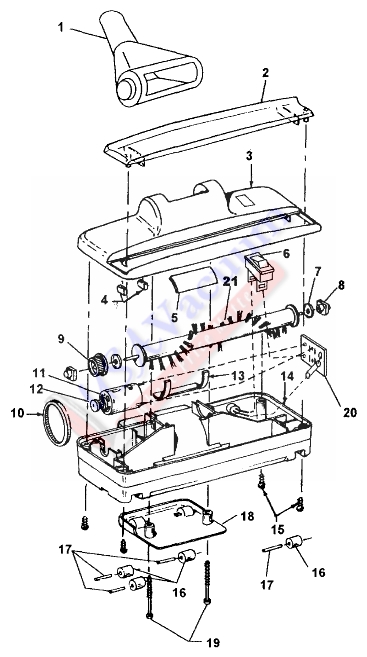

Hoover S2610 Quik-Broom with Power Nozzle and Tools Parts List & Schematic
ItemModels To FitPart Number
Power Nozzle - Complete S2610Part No Longer Available
1. Nozzle Connector S261059139300
2. Agitator Housing Lens S261059139259
Foam Seal Lens S261059139260
3. Agitator Housing S2610Part No Longer Available
4. Rubber Block S2610Part No Longer Available
5. Seal S261059139244
6. Switch S2610Part No Longer Available
7. Washer S2610Part No Longer Available
8. Agitator Bearing S261059139228
9. Pulley S2610Part No Longer Available
10. Belt S261059139232
11. Agitator Motor S261059139230
12. Motor Pulley S261059139275
13. Seal S261059139245
14. Bottom Plate S2610Part No Longer Available
15. Screw S2610Part No Longer Available
16. Roller S261059139233
17. Roller Shaft S2610Part No Longer Available
18. Bottom Cover S2610Part No Longer Available
19. Screw S2610Part No Longer Available
20. Circuit Board with Attachment Cord S2610Part No Longer Available
21. Agitator Assembly S261059139227
Cord Strap S261059139294
Torx Driver (Used to Remove Item 19 Screw) S2610171078--
