You are here: Home > HOOVER > HOOVER PARTS & SCHEMATICS BY MODEL > Stick & Canister Vacuum Parts (S Series)
 > S3289 - Spirit Canister
We found 38 results matching your criteria.
Hoover S3289 Spirit Canister Vacuum
ItemPart Number
1. Screw21447041
2. Motor Cover - AAG37195044
3. DiffuserPart No Longer Available
4. Speed Nut21366004
5. Seal34133007
6. Pad34132006
7. Seal34143002
8. Motor43577109
9. Wire Nut48969
10. Attachment Cord - MP -146363039
11. Strain Relief27482301
12. Wheel Bearing38511015
13. Wheel - AG38522061
15. Wheel CarrierPart No Longer Available
17. Main Body - MX37231038
18. Latch36151015
19. Filter31114009
20. Filter Support36426012
21. Motor Retainer36321011
22. Screw21447072
24. Switch28164276
25. Control Panel - LY37214031
29. Seal38781010
32. Paper Bag - 3 Pk.4010028K
35. Bag Housing Lid - AAG42212078
Owner Manual56513208
Carton58173374
Mid Pad58351015
Bottom Support58353007
Front Support58364013
Rear Support58461020
Crevice Tool - AG38617017
Furniture Brush - AG43414016
Hose - AGPart No Longer Available
Extension Tube - Poly - AG3863801P
Rug & Floor Nozzle - ABE0M114169

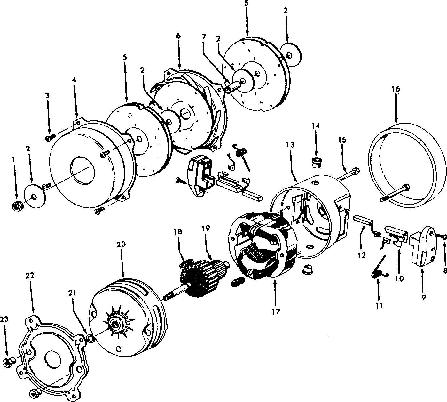

Hoover S3289 Spirit Canister Vacuum
ItemPart Number
1. Nut33426001
2. Washer21312701
3. Screw21434224
4. Outerstage Housing37191016
5. Fan43566017
6. InterstagePart No Longer Available
7. Spacer31742010
8. Screw21429406
9. Brush Carrier167696AG
10. Brush Holder - Use Brush Holder 47318008 (Includes Items 9 - 12)47318008
11. Spring38353004
12. Carbon BrushPart No Longer Available
13. Motor Housing - UpperPart No Longer Available
14. Bushing27452109
15. Bolt33421004
16. Insulator31195002
17. Field Coil45311035
18. Spring167721FW
19. Armature44765171
20. Motor Housing - Lower37191085
21. Spacer31148002
22. Mounting Plate36322002
23. Nut167695EF

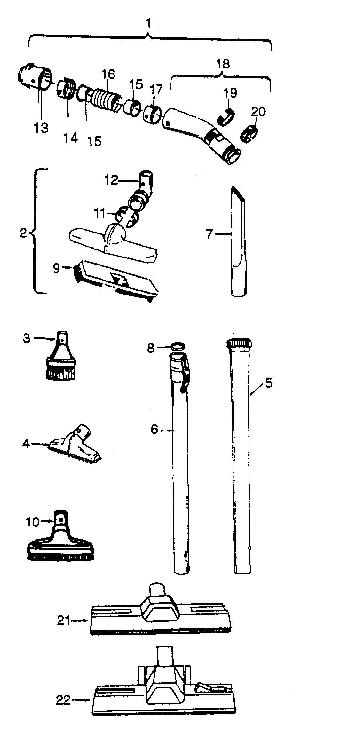

Hoover S3289 Spirit Canister Vacuum
ItemPart Number
1. Hose - JM - S/C - 6'Wire - Celebrity43434191
1. Hose - JM - S/C - 6'Wire - Spirit43434155
1. Hose Assem. - Stretch (not pictured)43434013
1. Hose - JM - 6'Wire - Spirit43434065
1. Hose - JM - 7.5'Molded - Spirit43434130
1. Hose - AAP - 7.5'- Molded - SpiritPart No Longer Available
1. Hose - AAP - S/C - 7- Molded - Spirit43434125
1. Hose - AAV - S/C - 6'- Molded - Spirit43434126
1. Hose - AAP - 6'- Molded - Spirit43434231
1. Hose - AG/ABX 6'Molded - SprintPart No Longer Available
2. Floor Brush - JM43414072
2. Floor Brush - AG43414073
3. Dusting Brush - AG43414064
4. Furniture Nozzle - AAP43414057
4. Furniture Nozzle - JM -1 Pc.38614020
4. Furniture Nozzle - AG -1 Pc.38614024
5. Extension Tube - Poly - 20 - JM43453037
5. Extension Tube - Poly - AG3863801P
6. Extension Tube - 20 - AX43453052
7. Crevice Tool - AG38617017
8. Gasket12845JM
9. Brush Back48447001
10. Furniture Brush - JM43414015
10. Furniture Brush - AG43414016
11. Split Ring33712007
12. Swivel Connector - AG38644020
Swivel Connector - AAP38644040
13. Hose Connector - Celebrity32855003
13. Hose Connector - AAP - Molded Hose38638017
13. Hose Connection - AAP38638019
13. Hose Connector - AG - Molded Hose38638039
14. Collar (All Wire Hoses)12615BZ
14. Collar (Molded Hoses)Part No Longer Available
15. Sleeve (All Hoses)Part No Longer Available
16. Hose - 6'- AAV - Molded38671029
16. Hose-6'- ABX- Molded38671033
17. Collar (All Wire Hoses)Part No Longer Available
17. Collar (Molded Hose)Part No Longer Available
18. Hose Grip -AAP -S/C43466044
18. Hose Grip - AG43466066
19. Suction Control Ring - JM38711006
19. Suction Control Ring - MV38711007
20. Latch Ring - AG36153009
21. Rug & Floor Nozzle - AAP43414139
21. Rug & Floor Nozzle - ABE0M114169
22. Rug & Floor Nozzle - DLX43414101
Hoover S3289 Spirit Canister Vacuum
ItemPart Number
A. Rug & Floor Nozzle - AAP - S3205, S3299, S3299-031 (Replaced by 43414101)43414101
1. Connector Tube43463012
2. Felt Gasket213267
3. Nozzle Body - JM - S329938615156
4. Litter Picker13259PH
5. Spring15963FW
6. Rib Shoe13261AY
7. Brush Back16184
8. Tube Retainer161413
9. Roller Shaft31524005
10. Bottom Plate42246002
11. Screw12955
12. Roller13157AG
B. Rug & Floor Nozzle-AAP-S3183, S3203, S3215, S3241, S3247, S3289, S3291, S3401 (Replaced by 43414121)Part No Longer Available
1. Nozzle Tube (See Note)166652JM
2. Gasket166651
3. Nozzle Body - JM43414089
4. Brush RetainerPart No Longer Available
5. Tube Clamp166650AY
6. Screw166648AW
7. Spring166649FW
8. Brush Back166656
C. Rug & Floor Nozzle-AAP-S3187, S3187-030 (Replaced by 43414101)43414101
C. Rug & Floor Nozzle - JM - S3207, S3257 (Replaced by 43414101)43414101
C. Rug & Floor Nozzle - MX - S325943414101
1. Foam Seal34113001
2. Washer169241AW
3. Wheel169239JR
3. Wheel - S3207169239AG
4. Lock Ring13730
5. Wheel Cover169242
6. Nozzle Body - JM38615161
7. Foam Seal34112001
8. Felt Seal34223002
9. Brush Housing169250AG
10. Rib Shoe169253AY
11. Brush Back169256
12. Furniture Guard169247JR
12. Furniture Guard - S3207, S3257169247JM
13. Gasket169251
14. Bottom Plate169538
15. Screw21481464
16. Screw21481465
17. Roller169243AG
18. Washer21312758
19. Roller Shaft169244AW
20. Lock Ring24735081
21. Spring166649FW
22. Foam Seal - L.H.34513001
23. Foam Seal - R.H.34513002
24. Wheel Shaft169240AY
25. Connector Tube169249JM
26. Seal34122006
27. Control Knob169254JM
Hoover S3289 Spirit Canister Vacuum
ItemPart Number
1. Standard Rug & Floor Nozzle Assembly - AAPPart No Longer Available
1. Standard Rug & Floor Nozzle Assem. - AAP43414139
1. Standard Rug & Floor Nozzle Assembly - ABE (S3393-020, S3521)43414140
1. Standard Rug & Floor Nozzle - ABX-S1221, S1315, S1337, S3393-0400M114169
1. Standard Rug & Floor Nozzle - AG - S1339, S354743414170
1. Standard Rug & Floor Nozzle - AG43414172
2. Nozzle Tube - AG38646039
3. Rug & Floor Nozzle - AAP38615153
2. Rug & Floor Nozzle - ABE - S3393-020, S3521, S1339, S3547, S1221, S1315, S133738615182
4. Roller (2) (Nozzle 43414172 Requires 4)38521018
5. Roller Axle - AY (2) (Nozzle 43414172 Requires 4)Part No Longer Available
6. Brush Housing - S1221, S1315, S133736414018
7. Spring (2)166649FW
8. Brush Back Assem. - AGPart No Longer Available
9. Screw - Self Tapping (2)Part No Longer Available
10. Brush Back Lever - MV38454004
10. Brush Back Lever - ABN - S3393-020, S3521, S1221, S1339, S354738454006
11. Felt Washer21329105
1. Deluxe Rug & Floor Nozzle Assembly - AAP43414101
2. Nozzle Connector - AAPPart No Longer Available
3. Wheel & Bearing Assem. (2)43244043
4. Wheel Bearing - AAT (2)38511016
5. Rug & Floor Nozzle - AAP38615180
6. Roller (2)38521018
7. Roller Axle - AY (2)Part No Longer Available
8. Slider - AG38451008
9. Brush Housing - MV36414013
10. Spring (2)166649FW
11. Brush Back Assem. - AGPart No Longer Available
12. Screw - Self Tapping (3)Part No Longer Available
13. Seal (2)34122013
14. Pedal - MV38434015
