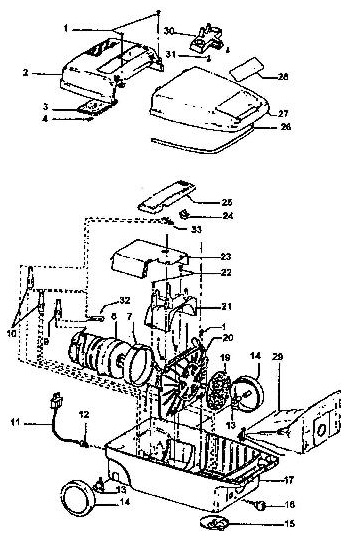

Hoover S3483 Spirit Canister Vacuum
ItemPart Number
1. Screw21447041
2. Motor Cover - MR37195063
3. DiffuserPart No Longer Available
4. Speed Nut21366004
5. Seal34133007
6. Pad34132015
7. Seal34143002
8. Motor-4.0-(P-1 56)43578069
9. Insulated Terminal (2 Wire)12227
Wire Nut (2 Wire)48969
10. Insulated Terminal (3 Wire)18972
11. Attach. Cord - AAP - 1 646363038
12. Strain Relief27482301
13. Wheel Bearing - AG38511015
14. Wheel - AAP38522058
15. Wheel Carrier - AGPart No Longer Available
16. Receptacle Assem. - AG46326079
17. Main Body - MX - (Includes Item 31)37231063
18. Latch36151015
19. Secondary Filter31114010
20. Bulkhead36426014
21. Motor Retainer36321012
22. Screw21447072
23. Muffler34287021
24. Switch28164276
25. Control Panel - AAP37214052
26. Lid Seal38781010
27. Bag Housing Lid - MR (Includes Items 26, 30, 31)42212097
28. Nameplate52125116
29. Paper Bag - 3 Pk.4010028K
30. Tool Rack - MX36433053
31. Screw21447003
32. Thermal Protector47534018
33. Insulating Pod160472
Owner Manual56513272
Carton58173376
Mid Pad58366069
Top Support58461023
Furniture Nozzle - AG38614024
Crevice Tool - AG38617017
Dusting Brush - AG43414064
Floor Brush - AG43414073
Hose - 2W - AAP - S/C Spirit43433084
Extension Tube - 20 - AX43453052
Power Nozzle - LZ48438190
Hoover S3483 Spirit Canister Vacuum
Item Part Number
Motor - 3.1 - S3259, S3269, S3269-060, S3271, S3271-060, S3295-031, S3299-031, S3405, S3419, S3423, S3441-031, S3441-070, S3473, S3475, S3481, S3627 43578051
Motor - 4.0 - S3269-036, S3269-070, S3271-036, S3271-070, S3483, S3485, S3485-070, S3487, S3499, S3501, S3503, S3505, S3621, S3629, S3631 43578069
1. Screw 21429406
2. Brush Carrier 168038AG
3. Brush Holder 168506
4. Spring 38353004
5. Carbon Brush 167679
6. Bushing 169702BZ
7. Bolt - 3.1 36112003
7. Bolt - 4.0 21563061
8. Motor Housing 42192016
9. Spring Washer 21345116
10. Thrust Washer 21312778
11. Star Ring 24198002
12. Field Coil - 3.1 45311048
12. Field Coil - 4.0 45311022
13. Armature - 3.1 44765185
13. Armature - 4.0 44765225
14. Motor Mount Insulator - 3.1 31195003
14. Motor Mount Insulator - 4.0 31195004
15. Diffuser 43551013
16. Spacer 31148009
17. Washer 21312701
18. Fan 43566017
19. Interstage 42192033
20. Spacer 31743003
21. Nut 33426001
22. Fan Cover 37196087
Hoover S3483 Spirit Canister Vacuum
Item Part Number
1. Cord - AG - Standard Plug 46321088
2. Nozzle Body 42252174
3. Agitator - 4B Part No Longer Available
4. Strain Relief Part No Longer Available
5. Bracket - RH 34663003
6. Nozzle Connector - LZ 43482024
7. Insulated Terminal (2 Wire) 12227
Wire Nut (2 Wire) 48969
8. Seal Part No Longer Available
9. Seal 34337003
10. Screw 21447041
11. Wheel - AG Part No Longer Available
12. Wheel Shaft Part No Longer Available
13. Bottom Plate (Includes Items 11, 12) Part No Longer Available
14. Screw 21447007
15. Lower Seal Part No Longer Available
16. Duct Cover 42256090
17. Seal 34123015
18. Detent Spring 35276001
19. Motor 43177073
20. Bracket - LH 35271001
21. Belt 38528011
Agitator - 4B Part No Longer Available
1. Thread Guard 41435018
2. Bearing 43267002
3. Washer 21347003
4. End Part No Longer Available
5. Agitator Brush 48445017
6. Shaft 160070
8. End Pulley 38537002
9. Thread Guard Part No Longer Available
Hoover S3483 Spirit Canister Vacuum
Item Part Number
1. Hose - AAP - Celebrity 43433085
2. Hose - JM - Spirit - 5-1/2' 43433032
3. Hose - AAP - Spirit - 5-1/2' 43433067
3. Hose - MV -S/C - Spirit - 5-1/2' 43433081
3. Hose - AAP - S/C - Spirit - T 43433084
3. Hose - 2W - AG -S/C - Spirit 43433111
4. Cord Repair Kit 46321076
5. Suction Reg. Control - AG 34777005
5. Suction Reg. Control - MV 34777007
6. Latch Ring - AG 36153009
7. Hose Tube - BL -14 43468055
8. Extension Tube - BL - 22 43453086
8. Extension Tube - AX - 22 43453035
8. Extension Tube - 20 - AX (Gray Clip) 43453052
8. Extension Tube - BL - 20 (Gray Clip) 43453058
9. Extension Tube - Poly - AG 3863801P
10. Extension Tube 43453027
11. Floor Brush - AG 43414073
12. Furniture Nozzle - 1 Pc. -17 38614023
12. Furniture Nozzle - AG 43414057
12. Furniture Nozzle - AG 38614024
13. Dusting Brush - AG 43414064
14. Crevice Tool - AG 38617017
15. Furniture Brush - JM 43414015
15. Furniture Brush - AG 43414016
16. Swivel Connector - JM 38644040
16. Swivel Connector - AG 38644020
17. Split Ring 33712007
18. Brush Back 48447001
19. Gasket 12845JM
20. Rivet 12783
21. Cord Clip - MV 36171008
21. Cord Clip - AG 36171005
22. Screw 13275
23. Suction Control 13142AG
24. Support 13257BZ
