Hoover U4313 - Commercial Upright Vacuum
ItemPart Number
01. Thread Guard & Sp - Part No Longer Available
01. Thread Guard-Left Hand Part No Longer Available
02. Agitator Bearing 43267002
03. Conical Washer 21347003
04. Agitator End 65 Part No Longer Available
04. Agitator End 160542
04. Agitator Complete 169371MF
04. Agitator Assembly Comp- 41435005
04. Agitator End Assembly 41435070
04. Agitator - Four Brush Part No Longer Available
04. 4 Brush Agitator 48414003
04. Agitator Assembly Part No Longer Available
04. Agitator Assembly Part No Longer Available
04. Agitator Assembly 48414021
05. Agitator Brush-Nylon Part No Longer Available
05. Agitator Brush Reverse 160646BZ
05. Agitator Brush Back 48445001
06. Agitator Shaft Part No Longer Available
06. Agitator Shaft 32724008
07. Thread Guard Rh 12985AY
07. Thread Guard-Rh 36423007
08. Belt-Convertible 049258AG
08. Belt 44783AG

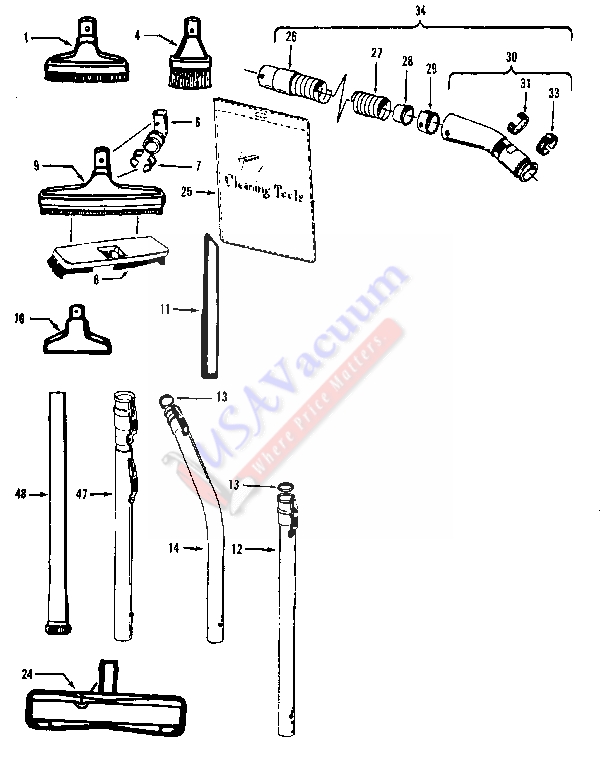

Hoover U4313 - Commercial Upright Vacuum
ItemPart Number
01. Furniture Brush Part No Longer Available
04. Dusting Brush 43414064
06. Swivel Connector 38644020
07. Split Ring 33712007
08. Brush Back 48447001
09. Floor Brush 43414073
10. Furniture Nozzle 43414057
11. Crevice Tool 38617017
12. Extension Tube Assembly 43453027
13. Gasket 38784087
14. Curved Tube Assembly 43466037
14. Hose Tube Assembly 43466040
24. Converter Body Assembly Part No Longer Available
25. Tool Bag Part No Longer Available
26. Hose Connector Part No Longer Available
26. Hose Connector-Short Part No Longer Available
27. Hose Less Ends Molded Part No Longer Available
27. Hose Assembly Comp - Aa Part No Longer Available
28. Hose Sleeve 12131
28. Hose Sleeve 32156010
29. Hose Connector Part No Longer Available
29. Hose Connector 36171025
30. Hose Connector Curve Part No Longer Available
30. Hose Grip W/Sc 43466068
31. Suction Control Ring 38711014
33. Latch Ring 36153021
34. Hose Assembly Comp Part No Longer Available
34. Hose Assembly Comp Part No Longer Available
47. Extension Wand Part No Longer Available
48. Extension Tube 3863801P

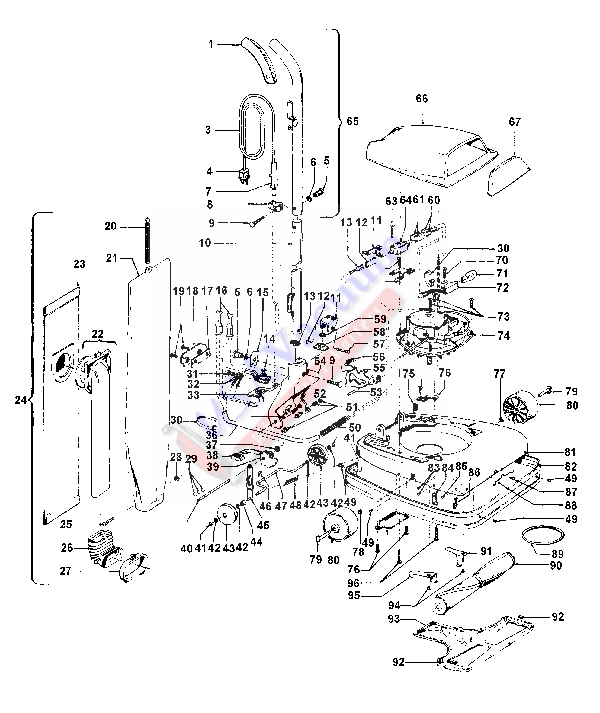

Hoover U4313 - Commercial Upright Vacuum
ItemPart Number
01. Handle Grip 023458PH
02. Cord 46383137
03. Attachment Cord Part No Longer Available
04. 7330-131P Plug Only Part No Longer Available
05. Bolt & Nut 48294AW
06. Handle Clamp Nut 32277008
07. Lock Washer 13704
08. Cord Protector 36215021
09. Cord Clamp Part No Longer Available
09. Handle Bolt 21631302
09. Cord Retainer 34785017
09. Bolt & Nut 48294AW
10. Handle Assembly Lower- 48631006
11. Switch Pedal 38424003
12. Circlip 24735022
13. Handle Plug 37911035
14. Switch 28212017
15. Handle Retainer Plat 35463002
16. Terminals 12227
16. Wire Nut 48969
17. Lead Wire Prot-Bail- 36215002
18. Bail Cover Plate 37954001
19. Screw Self Tapping Part No Longer Available
20. Support Spring Part No Longer Available
21. Outer Bag-Stripped 43677117
21. Outer Bag-Com-Top Fi Part No Longer Available
22. Top Fill Tube 38657004
22. Top Fill Tube & Seal 43482058
23. Top Fill Upper Bag - 3-Pk 4010001A
24. Outer Bag Comp-Guard 43678307
24. Outer Bag Comp Part No Longer Available
25. Screw 21765159
26. Bellows 38673009
27. Bag Flange W/Sealant 41424011
28. Nut 015854EF
29. Lock Ring Part No Longer Available
30. Cable Tie 27479307
31. Screw-Sems 23187363
32. Ring Tongue Terminal Part No Longer Available
33. Strain Relief Mounting 34223004
34. Strain Relief 39049
35. Bag Flange Clamp Lever 19907
36. Cord Cover Tubing - 31727010
37. Washer Part No Longer Available
38. Foot Pad-Ds Part No Longer Available
38. Foot Pad-Jm Part No Longer Available
39. Nozzle Adjustment Lever 161571JM
39. Nozzle Adj Lever 38452051
39. Nozzle Adj Lever Part No Longer Available
40. Bail Shaft 161509AY
41. Lock Ring 017207AZ
41. Wheel Retainer 32182001
42. Washer 21312772
43. Rear Wheel 38521041
44. Spacer 31148004
45. Cam Follower Assembly Part No Longer Available
45. Cam Follower-Plastic 43263003
46. Yoke 34252005
47. Rear Wheel Shaft 33141015
47. Rear Wheel Shaft 33152003
48. Spring 161513
49. Rivet-Tubular 32242004
50. Motor Lead Spring 38313023
51. Handle Cont Rol Pin Part No Longer Available
52. Spring 048409FW
53. Pivot Pin 047450AY
54. Bail 41416010
55. Handle Control Lever-Jm Part No Longer Available
56. Foot Pad 38426080
57. Shaft 613802AY
58. Mounting Bracket 35217006
59. Nut 12560
60. Terminal Part No Longer Available
61. Insulating Pod Part No Longer Available
62. Switch Actuator 38452028
63. Screw Assembly Part No Longer Available
64. Switch 019513AG
65. Upper Handle 48644022
66. Motor Hood 161649JM
66. Hood/Lens 42251297
67. Lens Part No Longer Available
68. Screw 14279
69. Switch Bracket Part No Longer Available
70. Screw 017001FW
70. Screw Part No Longer Available
71. Dirt Finder Lamp 42241
71. Lamp 27313101
72. Dirt Finder Socket 17016
72. Lamp Socket-L.V. Part No Longer Available
73. Screw Part No Longer Available
74. Motor Part No Longer Available
75. Spring 012559FW
76. Machine Screw Part No Longer Available
77. Pivot Pin Retainer 34665007
78. Lock Ring Part No Longer Available
79. Front wheel Shaft 047457AY
80. Front Wheel 34791AG
81. Main Body Assembly 42242064
82. Furniture Guard 36231037
83. Rivet Part No Longer Available
84. Agitator Support Plate 34355002
85. Rivet Semi-Tubular Part No Longer Available
86. Agitator Clamp Spring 047259AY
87. Rivet Part No Longer Available
88. Cleaner Bottom 34439
89. Belt-Convertible 049258AG
90. Agitator Assembly Comp- 41435005
91. Bottom Plate Latch Left Part No Longer Available
92. Support Pad 34111001
93. Bottom Plate Complete 42246008
94. Rivet Part No Longer Available
95. Bottom Plate Latch-Right Part No Longer Available
96. Screw-Self Tapping 16903
96. Screw 21447020
97. Axle/Bag Flange 35434040
98. Cord Protector 36215021
98. Medallion 51661008
98. Owner Manual 56511053
98. Owner Manual 56511150
98. Front Support 58343025
98. Rear Support 58366012

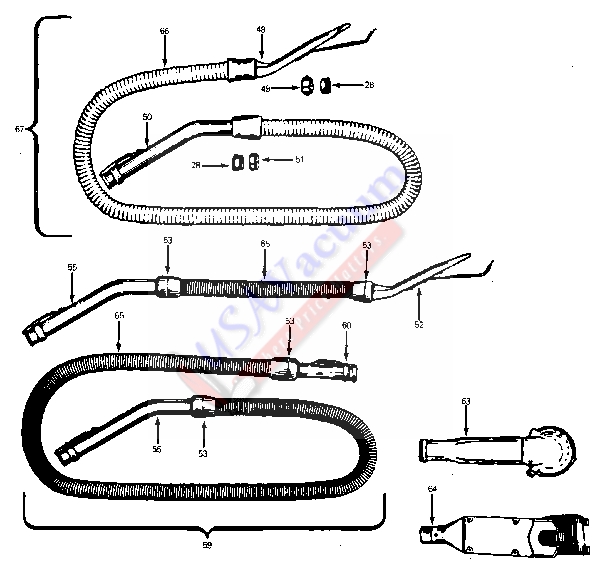

Hoover U4313 - Commercial Upright Vacuum
ItemPart Number
28. Hose Sleeve 32156010
48. Hose End - Converter 013147JM
49. Hose Connector 012615BZ
50. Nozzle Position Bracket Assembly Part No Longer Available
51. Hose Grip Collar 012704BZ
52. Hose End Converter 023473JM
53. Hose Grip 23393JM
55. Hose Tube Part No Longer Available
59. Hose Complete 022671JM
60. Hose End Short Part No Longer Available
63. Model 91 Connector 35190
64. Connector 034202JM
65. Hose-Less Ends-Ultra 048617JM
66. Hose Complete Part No Longer Available
67. Hose Assembly Complete 012864JM
68. Hose-Ultraflex-50 Ft Part No Longer Available
68. Hose-Tuflex-Jm-50 Ft Part No Longer Available
Hoover U4313 - Commercial Upright Vacuum
ItemPart Number
01. Screw Part No Longer Available
02. Lock Washer 14062
03. Indicator Guide Assembly 41961009
04. Upper Motor Bearing 42934002
05. Ventilating Fan 38755004
06. Screw Part No Longer Available
07. Upper Motor Casing 19857
08. Motor Brush 47318012
09. Brush Cap 36315003
11. Armature-8Mm Part No Longer Available
12. Field Bolt Part No Longer Available
13. Field Coil Part No Longer Available
13. Field Coil-Lv Part No Longer Available
14. Screw 21772501
15. Motor Case Lh Part No Longer Available
16. Nut Hex 15673
17. Bearing Retainer-8Mm 32184003
18. Washer-Lock 19772
19. Nut Part No Longer Available
20. Fan Spacer-8Mm Part No Longer Available
21. Washer Part No Longer Available
22. Fan 38755011
23. Washer-Heat Insulation 31162004
24. Motor Pulley-Heat In 38532009
25. Motor Bearing - 8Mm 24152807
26. Terminal 14320
27. Bearing Replacement 19829
27. Motor Gasket Part No Longer Available
27. Fan Spacer Part No Longer Available
27. Bearing Assembly Part No Longer Available
xx. Indicator Guide 35276006
xx. Armature-Spacer Part No Longer Available
