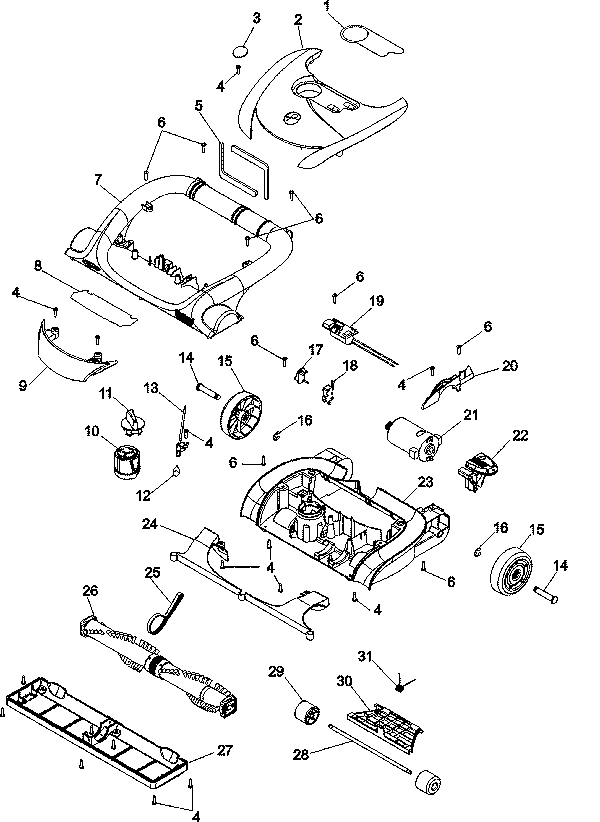

Hoover U8185 Savvy Bagged / Bagless Combo Upright Vacuum Parts List & Schematic
ItemPart Number
1. Edf Nameplate 91001038
2. Hood 92001045
3. Medallion 51661020
4. Screw 017001FW
5. Trunnion Seal 91001030
6. Screw - Self Tapping 21447242
7. Agitator Housing Part No Longer Available
8. Reflector 91001031
9. Lens 92001051
10. Height Adjustment Knob 92001049
11. Height Adjustment Cam 92001050
12. Bulb 27313107
13. Lamp Socket 47173037
14. Rear Axle 32434014
15. Rear Wheel with Tread 92001031
16. Lock Ring 160017--
17. Switch Bracket 36913031
18. Switch 91001026
19. Display Bridge Pcb 91001036
20. Motor Bracket 92001040
21. Agitator Motor 93001746
22. Handle Release Lever 38434026
23. Main Body 92001041
24. Nozzle Liner 92001074
25. Timing Belt 91001028
26. Agitator Assembly 93001748
27. Furniture Guard / Bottom Plate 92001039
28. Wheel Shaft 32541007
29. Front Wheel 38521009
30. Wheel Carriage Assembly 91001066
31. Torsion Spring 38355010
Foot Wire Harness 91001033
Owner's Manual Part No Longer Available
Hoover U8185 Savvy Bagged / Bagless Combo Upright Vacuum Parts List & Schematic
ItemPart Number
1. Tool Door 37257281
2. Tool Holder with Tool Part No Longer Available
3. Furniture Nozzle 38614044
4. Screw 21447072
5. Turbine Hand Tool Part No Longer Available
6. Dusting Brush Assembly 43414195
7. Lens - Handle Grip 92001057
8. Upper Handle Assembly Part No Longer Available
9. Screw - Self Tapping 214472ED
10. Switch Button 38421112
11. Switch / Circuit Board 27854033
12. Connector Mount 36911006
13. Attachment Cord Assembly - 31 Ft Part No Longer Available
14. Upper Housing Assembly 92001053
Hose Holder Upper 36433196
15. Cartridge Filter Knob 38411013
16. Dirt Cup Lid 37249055
17. Dirt Cup 38775094
18. Inlet Seal - Dirt Cup 38783029
19. Edf Printed Circuit Board 91001035
20. Receptacle / Harness 91001034
21. Screw 21447072
22. Cord Wrap Part No Longer Available
23. Microphone / Dirt Duct Assembly 92001064
24. Screw - Self Tapping 21447242
25. Crevice Tool - Long 38617031
26. Hose Assembly Complete 43431227
27. Wand Holder - Upper 36433197
28. Wand Holder - Lower 36433194
29. Screw - Self Tapping 21447242
30. Trunnion Duct 38683018
31. Front Panel Part No Longer Available
32. Screw - Self Tapping 21447242
33. Pre-Filter Assembly 91001048
34. Cartridge Filter 40140201
35. Motor Cover 37196184
36. Screw - Self Tapping 21447230
37. Final Filter 38766028
38. Final Filter Door 38769017
39. Foam Muffler 34163016
40. Motor Mount - Middle 36322036
41. Motor Assembly 93001747
Motor Face Seal 38785018
Thermal Protector 91001027
42. Extension Tube 38634078
43. Bag Container Lid 37249065
44. Inlet Seal - Bag Container 38783035
45. Bag Adapter 36424005
46. Bag Container 37256005
47. Allergen Filtering Bag - Y Type (3 Pack) 4010100Y
48. Hose Hlder Upper 36433196
Upper Wire Harness 91001032
