Kirby Ultimate G Diamond (G7)

You are here: Home > KIRBY > Kirby Schematics & Parts > Kirby Ultimate G Diamond (G7)

We found 1 results matching your criteria.

Kirby Ultimate G Diamond (G7) Cloth Bag & Mini Emtor Assembly

Item	Part Number
01. Bag Mini Emtor Assembly	187999
02. Bag Assembly (With Latch Only)	190099
03. Bag Top Cover	191899
04. Latch Cloth Bag	196499
05. Bag Clamp Strap	196599
06. Fill Tube Mini Emtor Assembly	185899
07. Micron Magic HEPA Bag (9 pack)	197301AW
08. Micron Magic HEPA Bag (3 pack)	197201SW
09. Micron Magic HEPA Bag (6 pack) Envirocare Replacement	8939
10. Mini Emtor	188999
11. Snap Fill Tube	190399
12. Snap Top Adaptor	190499
13. Fill Tube Tie	191182
13. Fill Tube Tie	191182

Kirby Ultimate G Diamond (G7) Base Pan Assembly

Kirby Ultimate G Diamond (G7) Fan Case Assembly

Item	Part Number
01. Fan Case Assembly	119797
02. Nozzle Lock Lever Assembly	125297
03. Screw - Nozzle Lock	1211
04. Spring - Nozzle Lock	1212
05. Nozzle Attachment Shaft	121689
06. Unigasket - Fan Case	122097
07. Volute Deflector - Fan Case	125489
09. Front Wheel Shaft Assembly	131694
11. Front Wheel Assembly	131989
12. Screw - Front Wheel	1321
13. Spring - Ratchet Lock	1331
14. Clamp - Front Wheel Shaft	134073
15. Screw - Front Wheel Shaft Clamp	193281
17. Ratchet Lock Assembly	631589
20. Screw - Fan Case/Slide Bracket Top	134689
21. Screw - Fan Case/Base Pan Flat Head	125189
22. Screw - Fan Case/Base Pan - Bottom	234898

Kirby Ultimate G Diamond (G7) Motor Unit Assembly

Item	Part Number
Motor Assembly Complete with Fan & Power Switch	101396A
01. Motor Housing with Tolerance Ring	100189
02. Ring Retainer - Front Bearing	101076
03. Screw - Motor Field	104689
04. Bearing Plate Assembly w/Motor Seal	105793
05. Brush Holder w/Brush	107189
06. Screw - Brush Cartridge	107989
07. Power Switch -120 V	110590
08. Rear Bearing	115589
10. Front Bearing	116073
11. Fan Assembly w/Spacer Seal	119096
13. Sprocket Gear (N/A) Order P/N 243503S	550603
14. Screw - Bearing Plate	600189
15. Motor Seal	600389
16. Nut - Field Screw and Bearing Plate	600589
17. Clip - Motor Drive	601689
18. Brush Lead Assembly - Right - 120 V	602889
19. Screw - Power Switch to Motor Housing	605989
20. Tie - Left Brush Lead	608089
21. Wire Assembly - Static Discharge - 120 V (5 pack)	603589
22. Tolerance Ring - Bearing Well (5 pack)	612795
23. Armature (with Rear Bearing)	114789
24. Circuit Board/Switch Assembly	632703

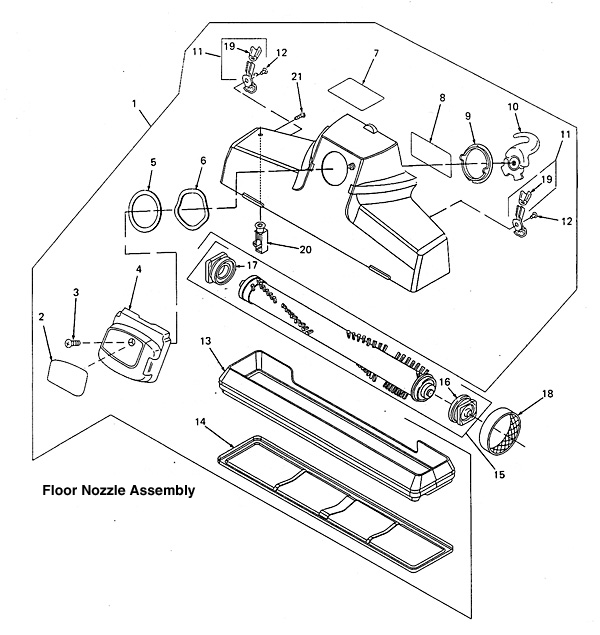

Kirby Ultimate G Diamond (G7) Floor Nozzle Assembly

Item	Part Number
01. Nozzle Assembly (Less Brush & Belt)	141699
02. Label Belt Lifter	673699
03. Screw (Torx) Belt Lifter	232596
04. Belt Lifter Body Assembly	159299
05. Flat Washer Belt Lifter	144681
06. Spring Washer Belt Lifter	314890
08. Label Brush Adjustment (5 pack)	149809
09. Bearing Belt Lifter	145481
10. Hook Belt Lifter	144291
11. Rug Plate Latch Assembly	640689
12. Rivet Latch Assembly	141381
13. Nozzle Bumper	140499
15. Brush Roll Assembly	152505G
16. Brush End Cap Small	156393
17. Brush End Cap Large	156493
18. Belt Knurled Brush Roll	301291
19. Sleeve Rug Plate Latch	640589
21. Screw	605989
