S3345 - Hoover Constellation Canister Bagged

Quick Links

What's Popular

You are here: Home > HOOVER > HOOVER PARTS & SCHEMATICS BY MODEL > Stick & Canister Vacuum Parts (S Series)
> S3345 - Hoover Constellation Canister Bagged

We found 28 results matching your criteria.

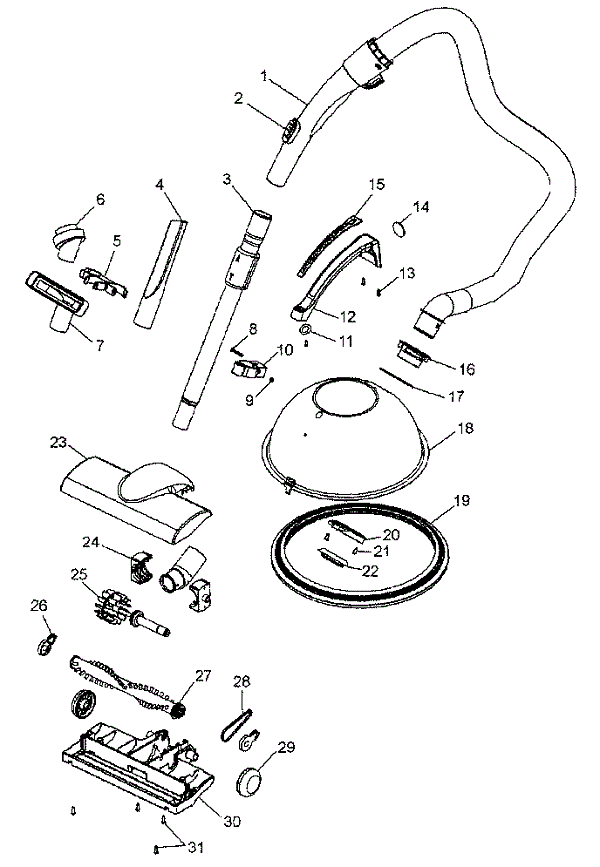

01. Hose With Suction Regulator Assembly 93002267
02. Suction Regulator Button 93002268
03. Telescopic Wand Assembly Complete 93002269
04. Crevice Tool - 7" 93001956
05. Tool Storage Holder Part No Longer Available
06. Dusting Brush 93001958
07. Upholstery Brush 93001959
07. 12" Hard Floor Brush 59132033
08. Wand Holder Screw Part No Longer Available
09. Telescoping Wand Holder Part No Longer Available
10. Wand Holder Nut 93001954
11. Handle Screw Washer 93001923
12. Handle Assembly Complete 93002254
13. Handle Screw 93001922
14. Medallion 93002255
15. Label - Constellation 93002256
16. Hose Connector 93002257
17. Seal Ring 93001919
18. Upper Dome Assembly Complete 93002253
19. Furniture Guard 93002258
20. Hose Connector Spacker 93001918
21. Hose Connector Screw Part No Longer Available
22. Bag Collar Seal 93001920
23. Turbine Floor Nozzle Assembly 93002270
23. Upper Housing Cover Part No Longer Available
24. Neck Connector With Couplings 93002278
25. Turbine Assembly With Shaft 93002276
26. Agitator / Brush Roll Bearings 93002275
27. Agitator / Brush Roll Assembly 93002274
28. Belt 93002273
29. Wheel Turbine With Shaft Assembly 93002277
30. Lower Housing / Base Assembly Part No Longer Available
31. Turbine Floor Nozzle Screw 93002279

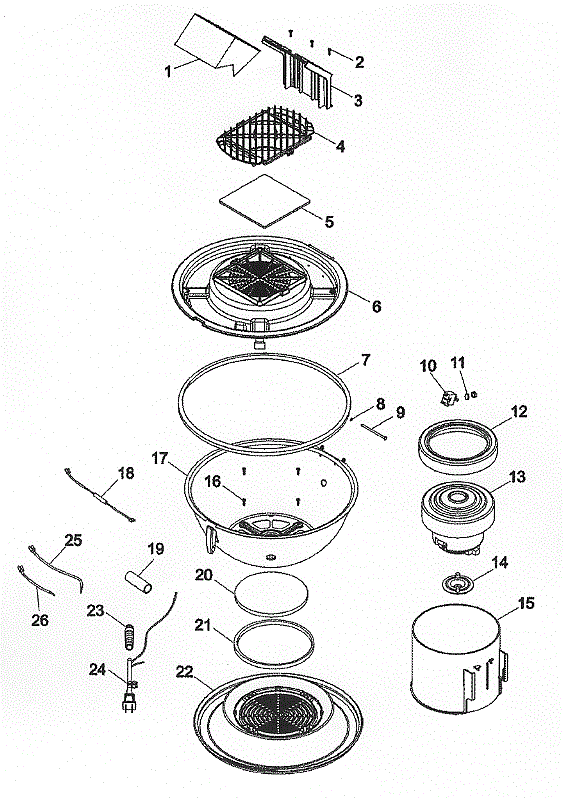

01. Type S Bag - Hepa 2 Pack 4010806
02. Filter Bag Holder Screw 93001937
03. Filter Bag Holder 93001934
04. Filter Retainer 93001935
05. Secondary / Inlet Filter Part No Longer Available
05. Secondary / Inlet Filter Scented - 2 Pack 40110011
06. Bulkhead Part No Longer Available
07. Seal Ring A Part No Longer Available
08. C-Clip / Hinge Pin Part No Longer Available
09. Hinge Clip Part No Longer Available
10. Toggle Switch 93001944
11. Toggle Switch Washer Part No Longer Available
12. Motor Seal Part No Longer Available
13. Motor 93002262
14. Motor Mount Bushing Part No Longer Available
15. Motor Shroud Part No Longer Available
16. Screw - Base Part No Longer Available
17. Lower Dome Assembly Complete Part No Longer Available
18. Fuse Assembly With Lead Wires 93002264
19. Pvc Tube - Strain Relief 93001947
20. Final / Exhaust Filter 93001930
21. Seal Ring B Part No Longer Available
22. Base Assembly Complete Part No Longer Available
23. Power Cord Strain Relief 93001946
24. Power Cord Part No Longer Available
25. Motor Wire With Terminal Part No Longer Available
26. Switch Wire With Terminal Part No Longer Available
