Sanitaire by Electrolux SC688 6.1Q CRI Upright Vacuum Cleaner
List Price: $299.00
Our Price: $249.00
You save $50.00!
Free Shipping 		more info
Sanitaire by Electrolux SC688 6.1Q CRI Upright Vacuum Cleaner
Count on this standard upright for continuous, deep cleaning every time. With a 6.1 quart disposable dust bag, this dependable workhorse is CRI Seal of Approval certified to provide a premium filtration level

Features:
  • CRI and LEED certified, 2-motor, 6.1-qt. upright with QuietClean or Normal operation flip switch.
  • CRI approved, 7-amp, rugged upright that is the perfect solution for green cleaning.
  • Easy access dual zipper bag makes installation of the 6.1-qt. bag simple and quick.
  • Easy maintenance and durability are built in with the 50-foot cord and Vibra-Groomer Brushroll with replaceable bristle strips.


1
Sanitaire SC688 CRI Approved Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Shoulder Screw, 10 Pack 53143
2. Adjustment Knob, 4 Position 268341
3. Adjustment Knob, SC675A,SC684D, SC699A/B,SC886A/B/D/E,SC887A/B, SC888A/B/D/E/F,SC899B/D/E 268331
3. Adjustment Knob, SC679G/H/J 380522
4. Adjustment Knob, SC684E/F 380532
5. Hood & Nameplate Assembly, Chrome, Vents, No Headlight, SC675A,SC684D, SC886A/B/D/E,SC887A/B 540972
6. Hood & Nameplate Assembly, Red, With Top Vents, SC679A/B/C/D/E/F Part No Longer Available
7. Hood & Graphics Assembly, SC679G/H/J, SC6984E/F 543142
Hood & Nameplate Assembly, SC681A Part No Longer Available
8. Hood & Graphics Assemby 543142
9. Hood & Nameplate, Chrome, SC688A/B/D/E/F, SC699A/B,SC899B/D/E 540981
Nameplate 37654
Nameplate, SC899B/D Part No Longer Available
Decal, SC886B/D,SC888A/B,SC899B/D/E Part No Longer Available
10. Lens, SC688A,SC699A/B,SC888A/B/D/E/F, SC899B/D/E 1260022
11. Strain Relief Bushing, 10 Pack 53122
12. Bushing Bracket 382181
13. Headlight Socket Assembly 37514
14. Headlight Bulb 40009A Part No Longer Available
15. Wire Nut, 5 Pack 601921
16. Screw, 10 Pack 532282
17. Cable Clamp, 5 Pack 53160
18. Screw, 10 Pack 5323813
19. Switch, Push Type, 13" Leads 3640913
19. Switch, Step-On, Flat Side 137385
20. Switch Nut 55446
21. Washer, 10 Pack 53102
22. Switch Button, SC679G/H/J,SC684E/F 146601
23. Switch Clip, SC679G/H/J 37989
24. Wire Clip 46713
25. Air Inlet Duct Assembly, Right Side 56379SV Part No Longer Available
26. Air Inlet Duct Assembly, Left Side 56380
Foam Tape 490523
27. Motor Shield 37020
28. Air Separator, SC679G/H/J 38314
28. Air Separator, SC684E/F 38067
29. Light Shield, SC888A/B/D/E/F,SC899B/D/E 25461
30. Motor Assembly, SC675A,SC684E/F,SC886A/B, SC888A/B/E/F,SC899A/B/D/E 543523
31. Motor Assembly, SC679A/B/D/E/F 533497
30. Motor Assembly, SC679G/H/J 533498
30. Motor Assembly, SC684D 54773
30. Motor Assembly, SC886D/E,SC887A/B,SC888D 5435211
32. Gasket, Motor Mounting 30517
33. Motor Screw, 10 Pack 5323813
Motor Mounting Screw, 10 Pack 5323814
34. Screw, 10 Pack 532282
35. Nut, 10 Pack 532134
36. Wire & Terminal 55296
37. Foot Pedal 24834A3 Part No Longer Available
38. Spring, Foot Pedal, 5 Pack 53097
39. Screw, Clamp, 10 Pack 5323814
40. Clamp & Screw Assembly, 6 Pack 53140
Set Screw 48642
41. Adaptor Retainer 37034
42. Screw, 10 Pack 5323811
43. Wire & Terminal 541731
44. Wheel Cover 36263
45. Hood Spring, 10 Pack 53117
Screw, Hood To Base, 10 Pack 532155
46. Base Assembly, Royal Red, SC675A, SC679G/H/J,SC681A,SC684A/B/D, 4948416
46. Base Assembly, Black, SC679A/B/D/E/F 534447
47. Base Assembly, SC684E/F 544106
47. Base Assembly, Red, SC886A/B/D/E, SC888A/B/D/E/F 5342513
47. Base Assembly, Red, With End Caps, SC886A/B/D/E, SC888A/B/D/E/F 534745
47. Base Assembly, SC887A/B 5342516
48. Base Assembly, White, 16", SC699A/B Part No Longer Available
48. Base Assembly, Royal Red, 16", SC899A/B 534628
48. Base Assembly, Bright Red, 16", SC899D/E 535004
Cam, Right Side 24964A1 Part No Longer Available
Cam 24965A1 Part No Longer Available
Rivet, Cam, 10 Pack 53118
Washer FQ-48246 Part No Longer Available
49. Fan Chamber Cover (SCroll Cover) 137701
50. Screw, Fan Chamber Cover 5323814
Fan Chamber Cover Kit 52334
51. Bellows, SC887A/B (For Dirt Cup Models) 147631
52. Clamp, SC887A/B (For Dirt Cup Models) 382881
53. Screw, 10 Pack, SC887A/B (For Dirt Cup Models) 532287

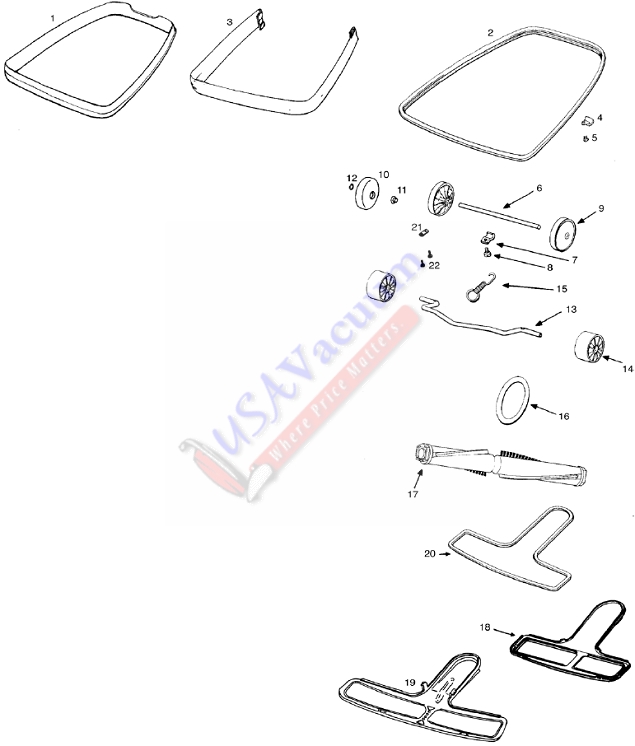

Sanitaire SC688 CRI Approved Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Furniture Guard, Clear, 40", SC675A,SC681A,SC684A/B/D,SC688A 2564815
2. Furniture Guard, Grey, Narrow, SC679A/B/D/E 348241
2. Furniture Guard, SC679F Part No Longer Available
2. Furniture Guard, SC679G/H/J Part No Longer Available
3. Furniture Guard, 31" SC684E/F,SC886A/B/D/E,SC887A/B,SC888A/B/D/E/F 285041
3. Furniture Guard, 47", SC699A/B 2564816
3. Furniture Guard, 37", Wide Track, SC899A/B/D/E 285042
4. Clip, Furniture Guard, 6 Pack 53144
4. Clip, Furniture Guard, SC899A/B/D/E 25666
5. Screw, Furniture Guard Clip, 10 Pack 532386
6. Rear Axle 47562
6. Rear Axle, SC899A/B/D 37183
6. Rear Axle, SC684F 60161
7. Axle Clip, 5 Pack 53111
8. Screw, Axle Clip, 10 Pack 5323811
9. Rear Wheel, Grey, Narrow 358582
x. Rear Wheel & Axle, SC684E/F,SC886A/B/D/E,SC887A/B,SC888A/B/D/E/F,SC899A/B/D/E 60161
10. Rear Wheel Only, SC684E/F,SC886A/B/D/E,SC887A/B,SC888A/B/D/E/F,SC899A/B/D/E 26242119N Part No Longer Available
11. Push Nut, 10 Pack, 53121
12. Washer, Rear Wheel, 10 Pack 53110
13. Front Axle 35947A Part No Longer Available
14. Front Wheel, Grey, SCoup Insides 35859A1 Part No Longer Available
15. Axle Spring, 6 Pack 530762
16. Belt, Sold Each 30563A Part No Longer Available
16. Belt, 2 Pack 52100
17. Brush Roll Assembly, Complete, VG II, 12", Hex End, Steel/Chrome, Ball Bearing 53270
17. Brush Roll Assembly , Complete, VG I, 12", Hex End, Aluminum 53272
17. Brush Roll Assembly, Complete, VG I, 12" Hex End, Double Bristle 54555
17. Brush Roll Assembly, Complete, Wood, 12", Hex End 533501
17. Brush Roll Assembly, Complete, VG II, Hex End Part No Longer Available
17. Brush Roll Assembly, Complete, Wide Track,16" Hex End, Aluminum 53273
18. Bottom Plate, With Slots 259221
19. Bottom Plate, Wide Track 25672A Part No Longer Available
20. Foam Tape 465384
21. Axle Clamp, 10 Pack 53201
22. Screw, Axle Clamp, 10 Pack 5323811
Sanitaire SC688 CRI Approved Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Cord Retainer Set, Upper & Lower, Beige 535741
2. Cord Retainer, SC887A/B 147662
3. Handle Grip 352938
4. Spring 53077
5. Upper Handle Assembly 2532935SV Part No Longer Available
6. Lower Handle Tube 126378
7. Screw & Nut Assembly 531981
8. Cord, 30 Ft, Beige 5237014
8. Cord, 50 Ft, Beige 5237012
9. Screw, 10 Pack 532282
10. Handle Socket Assembly, 12" Models 381831SV Part No Longer Available
10. Handle Socket Assembly, SC899A/B/D/E Part No Longer Available
11. Nut 532135
12. Bolt 53145
13. Screw & Nut Assembly 531981
14. Screw, 10 Pack 5323813
15. Shield, Handle Socket 36439
Handle Socket 36551A2 Part No Longer Available
16. Socket Only 2523823
17. Pin 41064G Part No Longer Available
18. Keps Nut 538333
19. Cotter Pin, 10 Pack 532322
20. Nut, 10 Pack 532135
21. Bushing, 5 Pack 53098
22. Shield 36439
23. Bolt 53145
24. Screw & Nut, 6 Pack 531981
25. Spacer, 5 Pack 53099
26. Screw, 10 Pack 532177
27. Spring 36649
28. Screw 5323813
29. Bracket Assembly 36521A Part No Longer Available
Sanitaire SC688 CRI Approved Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
Spring 48429
Spring 47722
Bag Clip, Chrome 30599D10 Part No Longer Available
Bag Adaptor Assembly, Black 541741
Gasket 48282
Washer 48748
Rivet 54507
Handle Hardware Package, Chrome 49461A
Red Cloth, HD Commercial Logo Part No Longer Available
Dark Sable Cloth, HD Commercial Logo Part No Longer Available
Red Corduroy, HD Commercial Logo 535068
Black Tietex, HD Commercial Logo 545822
Red Tietex, HD Commercial Logo 545821
Sanitaire SC688 CRI Approved Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Cover Pin 553991
2. Bag Flang 147651
3. Gasket 38289
4. Dirt Cup Support & Latch Assembly 545611
5. Clamp 262662
6. Steel Ring 57711
7. Snap Hook 576861
8. Bag Assembly 544226
Bag Gasket 58223
9. Dirt Cup 01959313N Part No Longer Available
Dirt Cup Assembly, Sold Without Bag 601221
Complete Dirt Cup Assembly, With Black Bag 545082
Bellows 147631
Clamp 382881
Screw, 10 Pack 532287
