Sanitaire SC689A 1.9 Quart Lightweight Dust Cup Upright
Our Price: $236.00
Free Shipping 		more info
Sanitaire SC689A 1.9 Quart Lightweight Dust Cup Upright
Save money on bags with this 14-lb., lightweight upright made for heavy-duty cleaning. From the easy-access dirt cup and 30-foot cord to the high filtration system, keep the focus on cleaning rather than maintenance. Easily combine an outer bag with the easy-empty dust cup.
Features:
  • 5 amp, high filtration dust cup upright means no keeping track of or paying for disposable bags.
  • Quick-release latch system allows the 1.9-qt. dust cup to pivot away from the bag making it easy to empty.
  • High-efficient, extra long-lasting commercial motor and True Balance double ball-bearing brushroll for less maintenance and downtime.
  • The 30-foot cord lets you clean a large areas before having to stop and re-plug.


1

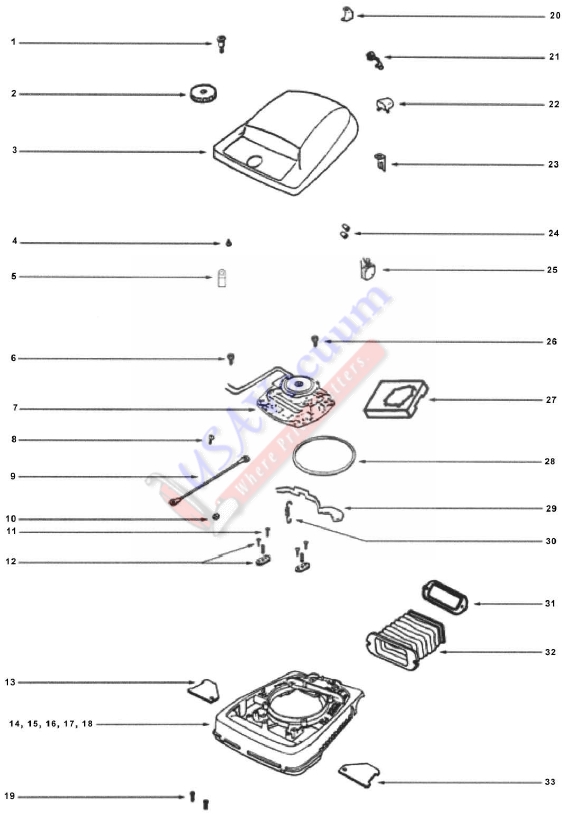

Sanitaire SC689 Lightweight Commercial Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Screw 53143
2. Knob Assembly 380532
3. Hood & Graphic Assembly 543142
4. Screw 5323811
5. Clamp (Cable) 576871
6. Screw 5323814
7. Motor Assembly 533498
8. Screw 532282
9. Wire & Terminal Assembly 55296
10. Nut 532135
11. Screw 5323813
12. Clamp & Screw Assembly 53140
13. Cover (Wheel) 36263
14. Base Assembly (12) 544085
15. Cam (Right) 24964A1
16. Cam (Left) 24965A1
17. Rivet (Shoulder Package) 53118
18. Washer Part No Longer Available
19. Screw 532155
20. Bracket (Bushing) 382181
21. Strain Relief Bushing 53122
22. Switch Button 146601
23. Clip (Switch) 37989
24. Wire Splice 601921
25. Switch Assembly 137385
26. Screw Package 532384
27. Separator Assembly 38314SV
28. Gasket (Motor Seal) 30517
29. Foot Pedal 248341
30. Foot Pedal Spring Package 53097
31. Clamp (Bellows) 382881
32. Bellows 147631
Sanitaire SC689 Lightweight Commercial Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Furniture Guard 285041
2. Push Nut Package 53121
3. Rear Axle 37183
4. Screw Package 5323811
5. Front Axle 35947A
6. Cover Cap Part No Longer Available
7. Disturbulator Replacement 541041
8. Wheel & Axle Assembly 60161
9. Rear Wheel 26242119N
10. Axle Clamp 53201
11. Spring & Axle Package 530762
12. Front Wheel 35859A1
13. Belt 52100A
14. Cap & Bearing Assembly 38138
15. Bottom Plate 259221

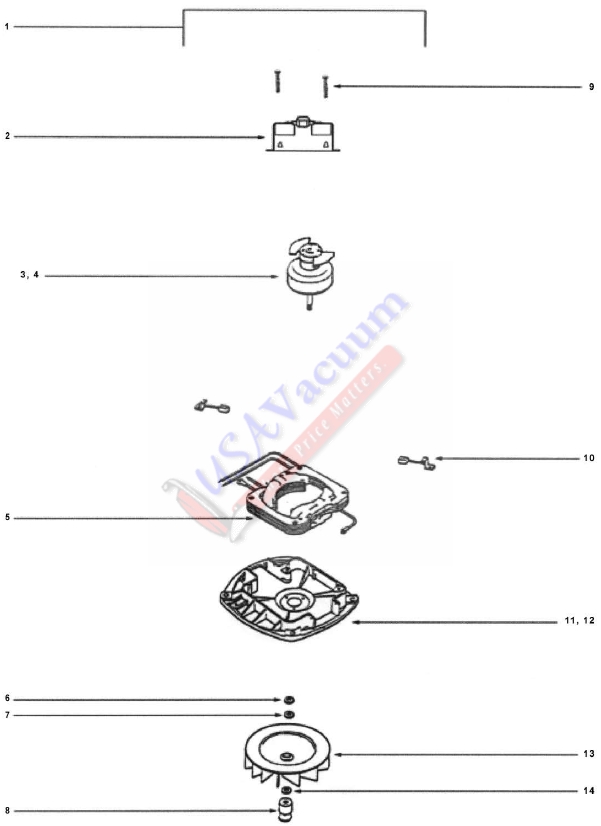

Sanitaire SC689 Lightweight Commercial Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Motor Assembly 533498
2. Fan End Housing Part No Longer Available
3. Armature 534703
4. Fan 26136
5. Field Assembly Part No Longer Available
6. Fan Washer 54811
7. Washer 53148
8. Pulley (Motor Drive) 370122
9. Lamp (Headlight) 40009A
10. Motor Brush Part No Longer Available
11. Motor Base Part No Longer Available
12. Ball Bearing 530885
13. Fan Blower (Motor) 129881
Sanitaire SC689 Lightweight Commercial Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Retainer Package (Upper / Lower, Beige) 535741
2. Handle Screw 531981
3. Handle Tube (Lower) 158001
4. Cord & Terminal Assembly 5237014
5. Screw 5323813
6. Handle Socket Assembly 381831SV
7. Nuts 532135
8. Bolt 53145
9. Handle Grip 352936
10. Spring (Strain Relief) 53077
11. Handle Assembly (Upper) 2532916SV
12. Wire Clip 55015
