Sanitaire SC5845B QuietClean 3.5 Quart Dust Cup HEPA Upright
List Price: $349.00
Our Price: $320.00
Sale Price: $309.99
You save $39.01!
Free Shipping 		more info
Sanitaire SC5845B QuietClean 3.5 Quart Dust Cup HEPA Upright
Developed for daytime cleaning, the QuietClean 3.5Q Sealed HEPA Upright is engineered to be the ultimate in bagless filtration with 13'' cleaning path, True Balance brushroll and an innovative sound-dampening system. This LEED Compliant and CRI Green Label certified, bagless cleaner combines a clean-air system with the ultimate in bagless filtration, washable, sealed HEPA and an extra-large dust cup.
Features:
  • Designed for daytime cleaning with True Balance brushroll and innovatve sound dampening technology.
  • Synthetic media filters 96.75% of allergens down to 0.3 microns for cleaner air.
  • This CRI Green Label certified upright features a 3.5-qt. easy-empty, large dust cup-one of the industry's largest.
  • 15-inch cleaning path, long 40-foot cord and onboard tools mean less stopping and starting to plug/unplug and look for tools.


1
Sanitaire SC845 HEPA Commercial Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Base Hose Assembly 72001
2. Base Hose Assembly 71447119N
3. Felt - Base 73153
4. Height Adjustment Knob 71448355N
5. Base Assembly 6187710
6. Spring Package 54943
7. Wheel Carriage 71446A119N
8. Front Axle 71478
9. Front Wheel 39173A119N
10. Belt - Style U (Extended Life) 61120A
12. Base Hose Assembly 71726119N
13. Screw 5323844
14. Hood Assembly 6187819
15. Handle Release Spring 71574
16. Screw 5323827
17. Motor Clamp 71487
18. Handle Release 71457355N
19. Retaining Ring 544321
20. Rear Wheel 72117119N
21. Axle Bushing 73432
22. Rear Axle 38590A
23. Belt Cap 71741A
24. Felt - Belt Cap 71672A
25. Brushroll Assembly 622282
27. Belt Guard 38063

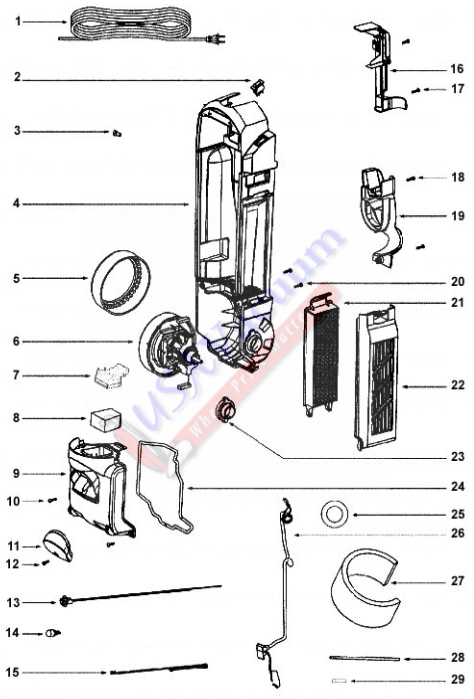

Sanitaire SC845 HEPA Commercial Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Supply Cord And Terminal Assembly 3868031
2. Rocker Switch 28073A
3. Wire Splice 601921
4. Rear Housing Assembly 72126B1
5. Motor Can Gasket 71649
6. Motor Assembly 62395
7. Motor Screen 71851119N
8. Pre-Motor Filter 71480
9. Motor Cover Assembly 6186314
10. Screw 5323827
11. Headlamp Lens 71460313N
12. Screw 5323844
13. Socket And Terminal Assembly 707012
14. Headlight Lamp 579403
15. Thermostat And Terminal Assembly 392521
16. Switch Cover Assembly 721271
17. Screw 5323827
18. Intake Gasket 71482
19. Screw 5323827
20. Lower Tool Pack 71455119N
21. Screw 5323827
22. Washable Hepa Filter 61840
23. Filter Cover And Graphics 720065
24. Motor Support Bushing 70084
25. Motor Cover Gasket 71484
26. Motor Hub Gasket 719691
27. Cord - Jumper Part No Longer Available
28. Foam - Sound 722241
29. Tube - Flexible 706511
30. Plug 72167
Sanitaire SC845 HEPA Commercial Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1A. Grip - Left Handle 15596355N
1B. Grip - Right Handle 15597355N
2. Upper Handle Assembly 731751SV
3. Cyclone Assembly 7153716
4. Dust Cup Filter 61825
5. Dust Cup Assembly 618641
6. Cord Retainer 28316355N
7. Screw 5323844
8. Dust Cup Latch 71479355N
9. Spring 61866
10. Screw 5323827
12. Catch - Filter In Place 71785119N
13. Spring 61867
14. Cyclone 71451119N
15. Cyclone Gasket 71475
Sanitaire SC845 HEPA Commercial Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Hose Assembly 618654
2. Hose Adapter 71725313N
3. Nesting Wand 71492
4. Crevice Wand 71956A-355N
5. Outer Wand 71973119N
6. Hose Coupling 70559A119N
7. Combination Dust Brush 609902
8. Hardware Package 72322
