Sanitaire by Electrolux SC883 Commercial Upright Vacuum Cleaners - Free Shipping
List Price: $329.00
Our Price: $289.00
You save $40.00!
Free Shipping 		more info
This Part Is No Longer Available
Replaced by Part # 20886
Sanitaire by Electrolux SC883 Commercial Upright Vacuum Cleaners - Free Shipping
This upright gives you the enhanced durability and easier on-site maintenance that a cleaning professional needs. It features an impact-resistant Durafan that can handle large debris with ease. The quick-change power cord, furniture guard, and bristle strips makes maintenance a breeze and the quick-access fan chamber allows for easy cleaning or replacement of the Durafan.
FEATURES:
* 7 amp motor
* 12 inch cleaning path
* 50 ft power cord
* Vibra Groomer II brush roll
* Quick-access Durafan
*Chrome steel hood
* Allergen-filtration shakeout bag
* 17½ lb unit weight.


1

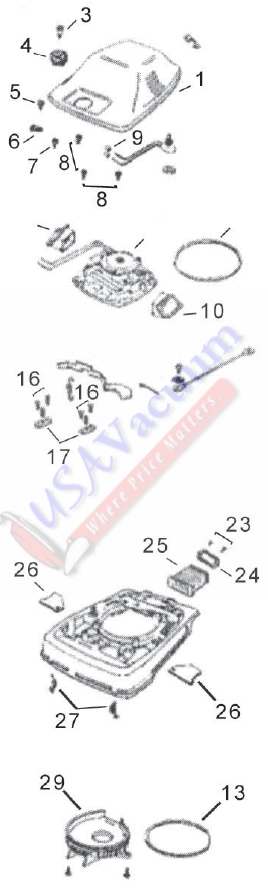

Sanitaire SC883 Commercial Contractor Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Hood & Nameplate Assembly 540975
3. Screw 53143
4. Knob Assembly 380532
5. Screw 532282
6. Cable Clamp Package 53160
7. Screw 5323813
8. Screw 5323817
9. Wire Splice 532141
10. Tape (Foam) 490523
11. Duct Assembly 563831SV
12. Motor Assembly 5435215
13. Gasket (Motor Seal) 30517
14. Duct Assembly (L) 563821SV
15. Spring (Foot Pedal) 53097
16. Screw 5323817
17. Clamp & Screw Assembly 53140
18. Base Assembly 5342524
19. Cam (Right) 24964A1
20. Cam (Left) 24965A1
21. Rivet (Shoulder Package) 53118
22. Steel Washers Part No Longer Available
23. Screws 532287
24. Clamp (Bellows) 382881
25. Bellows 147631
26. Cover (Wheel) 36263
27. Spring (Hood Package) 53117
28. Fan Chamber Replacement 52334
29. Cover (Fan Scroll) 137701
30. Screw 5323817
31. Washer 531881
32. Nuts 532134
33. Wire Assembly (Grounding) Part No Longer Available
34. Wire & Terminal Assembly Part No Longer Available

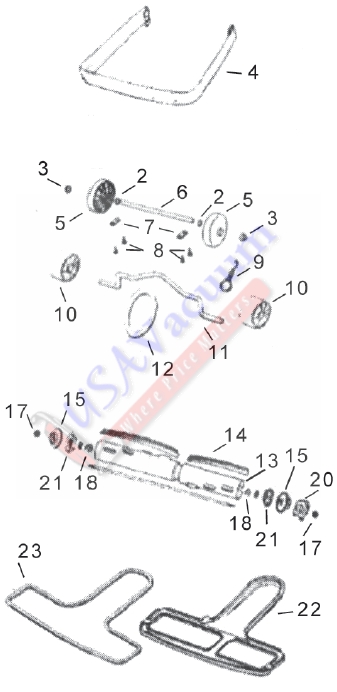

Sanitaire SC883 Commercial Contractor Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
2. Washer (Wheel Package) 53110
3. Push Nut 53121
4. Furniture Guard Assembly 76334
5. Rear Wheel Overmold 763691
6. Axle (Rear) 37183
7. Clamps 53201
8. Screw 5323811
9. Spring & Axle Package 530762
10. Wheel (Front) 35859A1
11. Axle (Front) 35947A
12. Belt (Disturbulator Drive) 30563A
13. Tube (Disturbulator) 132363
14. Bristle Strip Package 522824
15. Cap (Disturbulator) 26057A
16. Bearing & Retainer Assembly 542561
17. Lock Nut Package 53158
18. Klipring Package 53184
19. Shaft (Disturbulator) 25937
20. Cap (Cover) Part No Longer Available
21. Bearing & Retainer Assembly 542561
22. Bottom Plate Assembly 259221
23. Tape (Foam) 465384
24. Axle Bushing Part No Longer Available
25. Disturbulator Assembly 53270

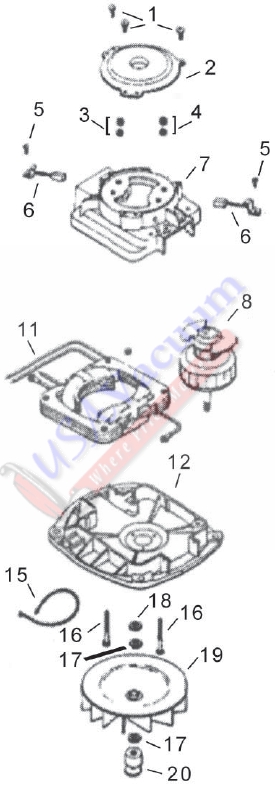

Sanitaire SC883 Commercial Contractor Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Lock Nut Package 53158
2. Retainer (Upper Bearing) Part No Longer Available
3. Nuts 532134
4. Lockwashers 532223
5. Screws 532192
6. Motor Brush Assembly 30478
7. Motor Cover Assembly 54396
8. Armature (Fan & Bearing Assembly) Part No Longer Available
9. Ball Bearing 530885
10. Fan (Motor Cooling) 30474A
11. Field Assembly 534412
12. Motor Base Assembly 541691
13. Bearing Retainer Assembly Part No Longer Available
14. Rivet Package 531871
15. Tie (Cable) 568022
16. Screw Part No Longer Available
17. Washer (Fan) 53148
18. Washer Package 531881
19. Fan Blower (Motor) 77247355N
20. Pulley (Motor Drive) 370122

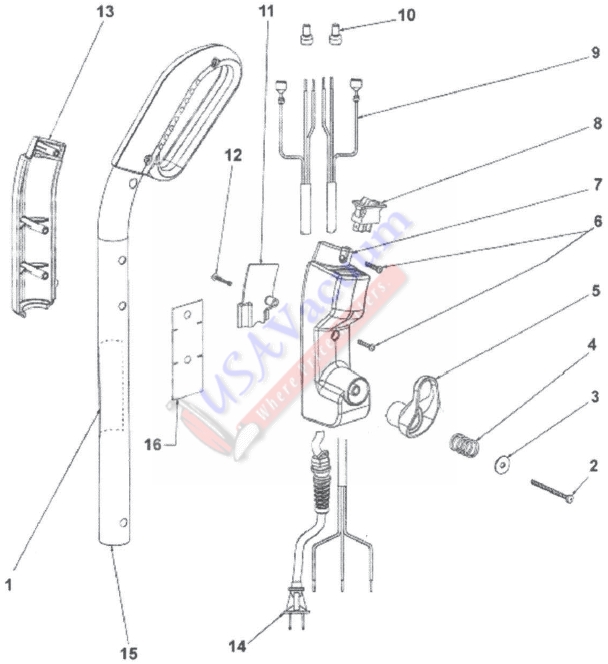

Sanitaire SC883 Commercial Contractor Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Label Part No Longer Available
2. Screw 5323818
3. Washer 60946
4. Spring 60945
5. Retainer (Cord) 28316355N
6. Screw 531971
7. Housing Switch (Lh) 76643355N
8. Switch (Rocker) 28073A
9. Upper Cord Assembly 76767
10. Wire Splice 5 601921
11. Shield (Wiring) 59741316N
12. Screw 60947
13. Housing Switch (Rh) 76644355N
14. Supply Cord Assembly 36577A23
16. Housing Switch (Rh) 76644355N
17. Cord (Extension) 76224
18. Cord Lock 76225355N

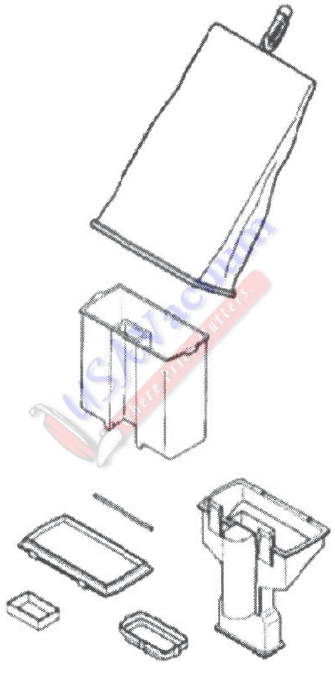

Sanitaire SC883 Commercial Contractor Upright Vacuum Cleaner Parts List & Schematic
ItemPart Number
1. Bag Assembly 5442210
2. Gasket (Dirt Cup) 58223
3. Dirt Cup Assembly 1484412
4. Support & Latch Assembly 545611
5. Pin Cover 553991
6. Flange Bag (Outer) 147651
7. Gasket 38289
8. Clamp 262662
9. Dirt Cup 01959313N
10. Hardware Package 57838B
