You are here: Home > HOOVER > HOOVER PARTS & SCHEMATICS BY MODEL > Upright Vacuum Parts (U Series)
 > U8341- WindTunnel 2 Bagless
We found 0 results matching your criteria.

ItemPart Number

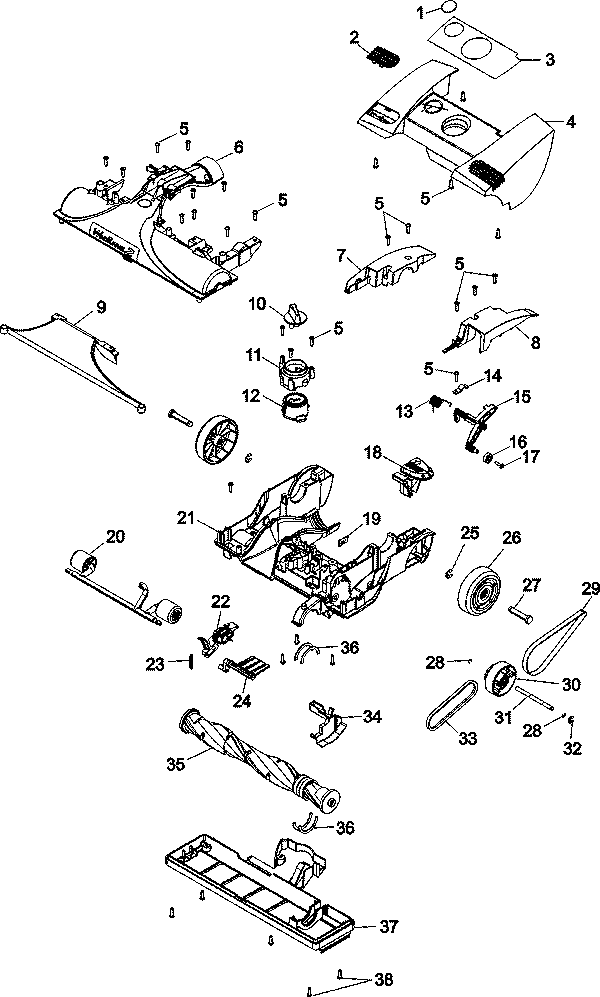

01. Medallion 51661020
02. Non-Edf Cover 91001127
03. Hood Nameplate Part No Longer Available
04. Hood - Std 91001131
05. Screw-Self Tapping 21447242
06. Agitator Hsg-Cp(Split) 92001286
07. Trunnion Cover-R-Mv(Split) 91001111
08. Trunnion Cover-L-Mv(Split) 91001112
09. Nozzle Liner-Akk 91001126
10. Height Adj Knob-Ahb 91001134
11. Height Adj Cam-Ag 91001138
12. Cam Holder - Ag 91001122
13. Torsion Spring 38356014
14. Actuator Arm Trun 91001116
15. Idler Pulley Arm-Ag 91001136
16. Bearing 91001105
17. Screw-Tapping 91001103
18. Handle Release Lever-Ag 38434026
19. Pcb Hall Assy. 91001165
20. Front Axle Assy. 91001159
21. Main Body Assy. 91001156
22. Agit Hsg/Valve Arm 42246150
23. Spring-Turbine Act 38331006
24. Valve Door - Ag 91001142
25. Lock Ring 160017
26. Rear Wheel W/Tread 38522082
27. Rear Axle 32434007
28. Retaining Ring 91001106
29. Poly V-Belt 91001137
30. Transfer Pulley 43241009
31. Transfer Pulley Shaft 91001110
32. Retaining Ring 91001107
33. V-Belt 38528034
34. Belt Cover - Ag Part No Longer Available
35. Agitator Assy 48414160
36. Agitator Pulley Seal 38781053
37. Bttm Plt/Guard Asy 91001157
38. Screw 17001

ItemPart Number

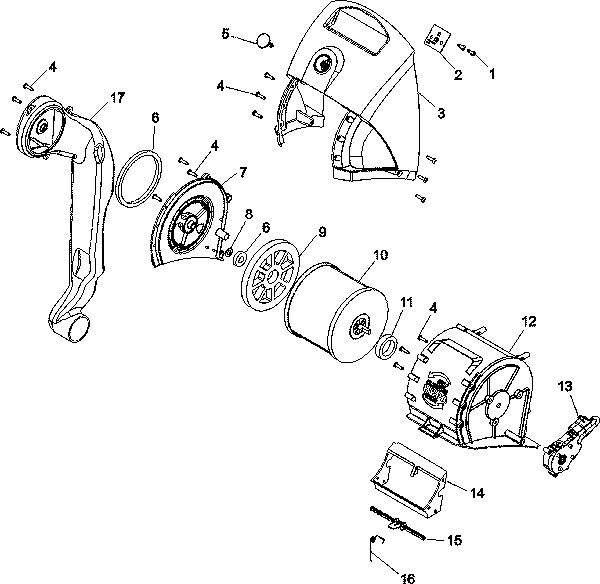

01. Screw-Self Tapping 21447242
02. On/Off Switch 91001163
03. Carry Handle Co 91001132
04. Screw 17001
05. Power Button 90001353
06. Gaskets 91001147
07. Kit, Filter U8341 12002818
08. Thrust Washer 91001171
09. Filter Gasket 91001172
10. Kit, Filter U8341 12002818
11. Filter Spring Gasket 91001173
12. Filter Hsg Cover-Akk 91001174
13. Primary Filter Trans 91001109
14. Filter Partition 91001143
15. Filter Flicker 91001155
16. Torsion Spring-Flicker 91001175
17. Clean Air Duct 91001140

ItemPart Number

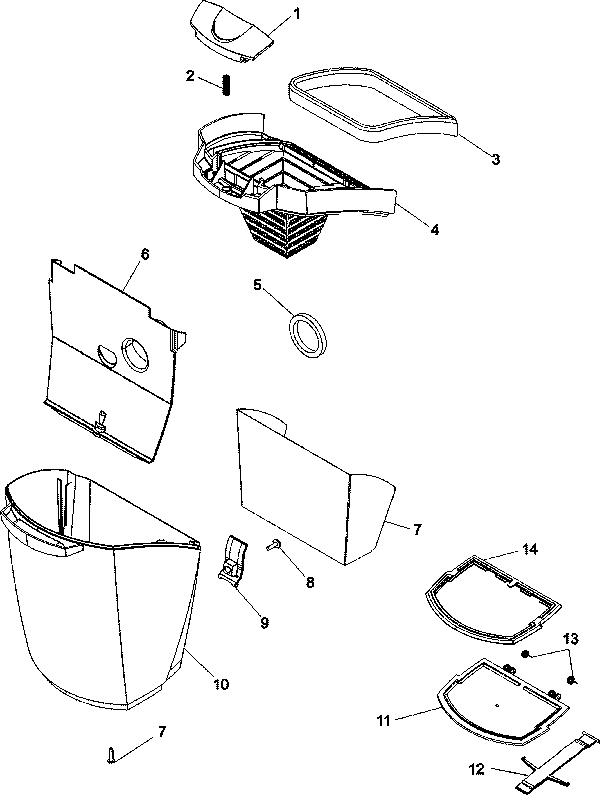

01. Dirt Cup Latch 91001115
02. Spring 90001037
03. Gasket Lid-Dirt Cup 92001288
04. Dirt Cup Lid-Akk 91001129
05. Gaskets 91001147
06. Dirt Cup Partition Part No Longer Available
07. Insert-Dirt Cup 57127269
08. Screw-Self Tapping 21447242
09. Dirt Cup Dr Act-Ahb 91001135
10. Dirt Cup - Bz 91001145
11. Dirt Cup Door - M 91001130
12. Dirt Cp Dr Latch-Ag 91001114
13. Torsion Spring 91001176
14. Dirt Cp Dr Gasket 91001149

ItemPart Number

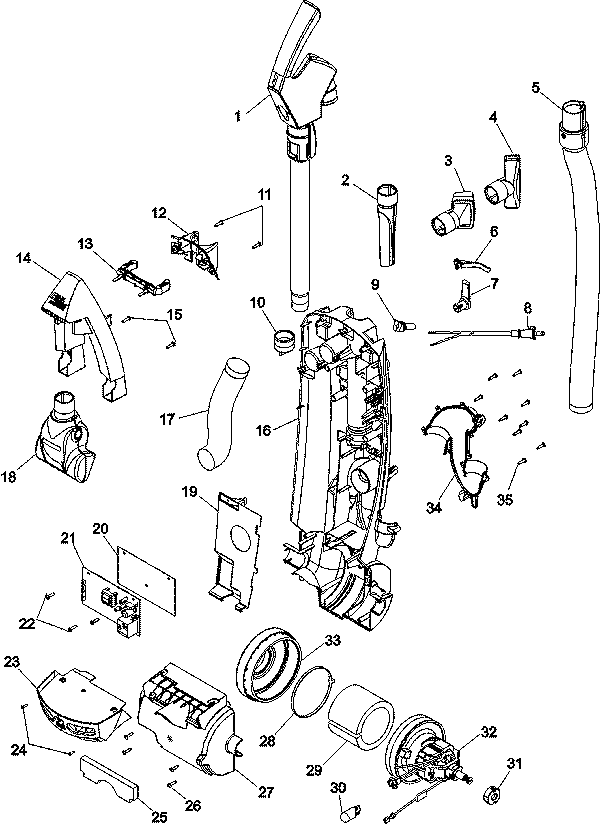

01. Upper Hndl/Wand Asy Part No Longer Available
02. Crevice Tool-Ag 92001194
03. Dusting Brush Asy-Ag Part No Longer Available
04. Furniture Nozzle-Ag 92001196
05. Hose Assy. 91001160
06. Hose Clip 91001117
07. Cord Wrap Part No Longer Available
08. Cord-35' 46383334
09. Cord Protector-Wtbgl 36215028
10. Wand Retainer-Ag 92001290
11. Screw-Self Tapping 21447242
12. Rel Ltch/Wand Ret-Mv 91001121
13. Wand Rel Latch-Ahb 91001139
14. Handle - Upper - Mv 91001154
15. Screw-Self Tapping 21447242
16. Upper Housing-Mv 92001291
17. Lower Hose Part No Longer Available
18. Turbine Hand Tool 91001168
19. Wire Cover Part No Longer Available
20. Insulator 91001123
21. Power Pcb Board 91001164
22. Screw-Self Tapping 21447242
23. Lens, Dirt 91001150
24. Screw-Self-Tapping 21447228
25. Final Filter 38769032
26. Screw-Self Tapping 21447242
27. Motor Cover - Mv Part No Longer Available
28. Lead Wire Tie 91001178
29. Foam Muffler 91001152
30. Bulb 27313107
31. Motor Mount-Small 36322030
32. Motor Assy. 91001108
33. Motor Seal - Ag 91001148
34. Dirt Duct Cover Part No Longer Available
35. Screw-Self Tapping 21447242
36. Wire Harness 91001162
