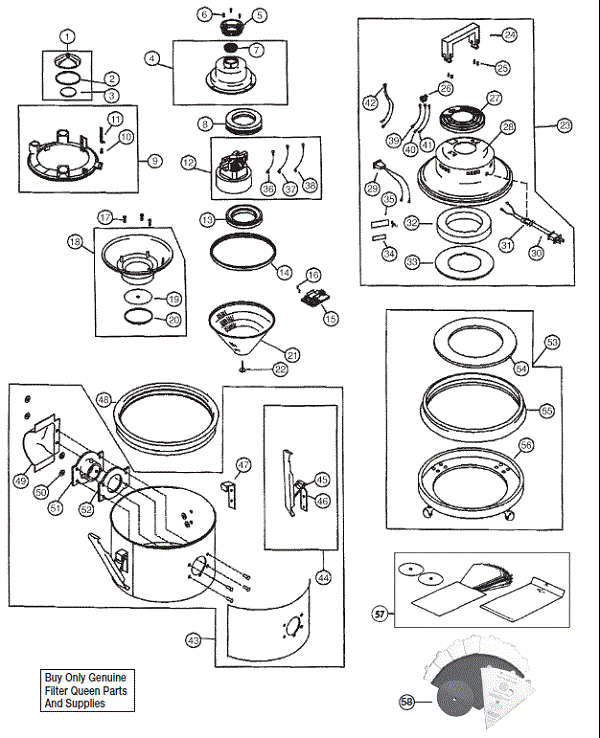

Filter Queen Canister Model M360SS
01. Cap, Dome Complete, Black 010-4073000
02. Gasket, Cap Dome 010-7610
03. Pad, Cap Felt 010-1812
04. Motor Support, Upper 010-3180
05. Connector, Plastic Dome Cap Black 010-7510
06. Screw, 8 X 1/2" 010-8888000900
07. Screen, Upper Plastic Black 010-7505
08. Gasket, Top Motor 010-350059
09. Holder, Attachment Black 010-5702
10. Screw, Attachment Holder 010-2888008100
11. Spring & Pin Complete 010-7201
12. Motor Complete 2 Speed 1 Stage 3 Wire 010-6036
12. Motor Complete, 2 Speed 2 Stage 3 Wire 010-6010
13. Gasket, Bottom Motor 010-350060
14. Gasket, Black Dome 010-31775
15. Circuit Board, 112C, 75th 010-3610
15. Circuit Board 2 Speed W/Relay M360SS 010-3660
16. Screw, 4 X 1/2" 010-8888003800
17. Screw,10-32 X 3/4" 010-8888000700
18. Lower Motor Support Complete 010-6201
19. Filter, Secondary Disc 010-95450
20. Filter, Retainer Disc 010-95798
21. Cone, Perforated Black 010-31770
22. Screw, Thumb Cone Perforated 010-350712
23. Dome Assy Complete 010-FNLA
24. Handle, Complete Black 010-9966
25. Screw, 8 X 3/4" 010-31319P
26. Switch, 2 Speed 3 Terminal Red Rocker 010-34007
26. Switch, 2 Speed 6 Terminal Rocker M360SS 010-3460
27. Grille, Text W/Heat Trans Black 010-7535
28. Dome 010-FNLA
29. Outlet, Snap In Black 010-33321M
30. Cord, 20 Ft 2 Wire Black 010-FNLA
30. Cord 23', M360SS 010-3060
31. Strain Relief 010-3266
32. Filter Ring 010-1800
32. Filter ring 010-1815
33. Filter, Cardboard Support 010-31791
34. Labels, Dome Filter 010-2419500000
35. Label, Warning 010-2419400000
36. Lead Wire, Black 010-2029000201
37. Lead Wire, Red 010-2029000203
38. Lead Wire, Blue 010-2029000207
39. Lead, Terminated, 12", Yellow 010-2029000105
40. Lead, Terminated, 12", Blue 010-2029000107
41. Lead, Terminated, 12", White 010-2029000110
42. Lamp, Dome 010-95835
43. Dirt Container Complete 010-FNLA
44. Clamp, Dirt Container, Silver 010-7519
44. Clamp, Dirt Container, Chrome 010-7520
45. Rivet, Clamp 010-8888000300
46. Spring, Clamp 010-2231000100
47. Bracket, Clamp Dirt Container 010-500778
48. Gasket, Dirt Container Black 010-200430
49. Deflector, Stainless 010-200451
50. Washer 010-11246
51. Inlet 010-35043
52. Gasket, Inlet 1/16" 010-2430000200
53. Dolly Complete, Silver 010-4062000701
53. Dolly Complete, Chrome 010-4062000101
54. Shield, Caster 010-95905
55. Bumper, Black 010-99783
56. Caster & Plate, Black Silver 010-7112
56. Caster & Plate, Black Chrome 010-7115
57. Filter Cone, Paper 12 Pk 010-50047
57. Filter cone, Paper Dvc 12 Pk 010-1400
57. Filter cone, Paper env 12 Pk 010-1450
58. Filter Cone Kit - 6 Pre Filters, 1 Medipure, 1 Flat Filter 010-1827

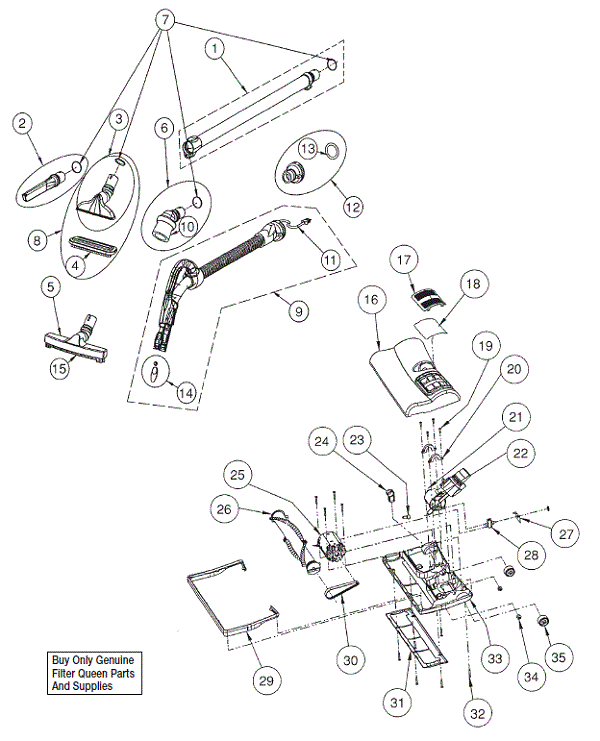

01. Wand Complete Plastic, Black 010-FNLA
01. Wand Complete, Stainless 010-5001
02. Crevice Tool Complete 010-5412
03. Upholstery Tool Without Brush, W/Curved Neck 010-5205
04. Upholstery Brush Only, Black 010-5210
05. Bare Floor Brush Complete, W/Curved Neck 010-5510
06. Dusting Brush Complete 010-5300
07. Seal O Ring, Attachments 010-7605
08. Upholstery Tool With Brush With Curved Neck Complete 010-5200
09. Hose With Gas Pump Handle, Complete 010-4005
10. Insert, Dusting Brush Only 010-33806
11. Cord Pigtail, Male/Female, 10.5" Black 010-96821
12. Swivel Connector, Machine End 010-96803
13. Gasket, Machine End 010-3407
14. Button & Spring, Wand End 010-4505
15. Insert, Bare Floor Brush Only 010-2200
16. Upper Housing PN, Black 010-7212
16. Upper Housing PN, Silver 010-7211
17. Grille, Motor Filter, Nozzle 010-7220
18. Filter, Motor PN 010-1810
19. Screw, #6-19 010-7888008804
20. Bracket, Swivel Adapter, (2) Req. 010-7225
21. Seal, Felt, Upper Nozzle 010-1855
22. Swivel Adapter, Complete 010-7210
23. Crimp Connector 010-7240
24. Swivel Adapter, Lock 010-1210000600
25. Motor, PN, Geared Shaft 010-6060
26. Brushroll, Complete 010-2025
27. Bracket, Circuit Breaker 010-3450
28. Circuit Breaker 010-8831
29. Bumper, Power Nozzle 010-7410
30. Belt, Geared 010-1075
31. Bottom Wear Plate, Power Nozzle 010-7612
32. Screw, Flat #6-32 010-7888012400
33. Lower Housing, Black 010-7515
33. Lower Housing, Silver 010-7216
34. Wheel, Front 010-7110
35. Wheel, Rear 010-7100
|
|
|
