Filter Queen Canister Model PNG92 Princess

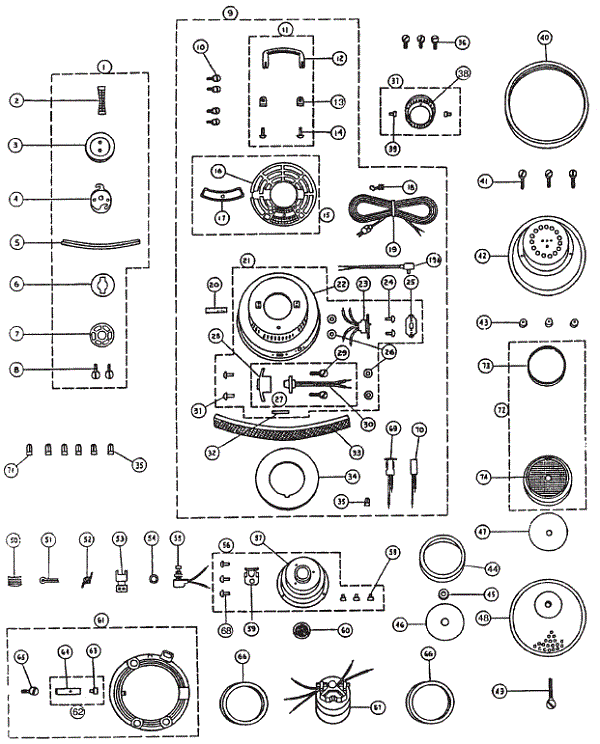

01. Dome Cover Assembly 010-9273
02. Handle 010-92314
03. Outer Dome Cover (Order Key #1) 010-FNLA
04. Inner Dome 010-95650
05. Dome Sealing Gasket 010-31776
06. Air Scent Felt Pad 010-500790
06. Air Scent Felt Pad 010-1820
07. Felt Retainer Spring 010-500793
08. Screw For Handle 010-31795
09. Complete Dome Assembly 010-9260
09. Complete Dome, Chrome 010-FNLA
09. Complete Dome, D33 010-FNLA
10. Screw For Bracket 010-33719
11. Handle And Bracket Assembly 010-9966
12. Handle (Order Key #11) 010-FNLA
13. Handle Bracket (Order Key #11) 010-FNLA
14. Rivet (Order Key #11) 010-FNLA
15. Decorative Grill W/Name Plate 010-9267
15. Decorative Grill Chrome 010-FNLA
16. Decorative Grill 010-FNLA
17. Light Decal/Nameplate 010-FNLA
18. Cord Strain Relief 010-FNLA
19. Attachment Cord 20' 010-92301
19. Attachment Cord 25' 010-FNLA
19. Attachment Cord 25' 010-FA30
19A. Cord For Rewind 010-FNLA
20. Warning Label 010-92767
21. Dome Assembly 010-FNLA
21. Dome Assembly, Painted 010-FNLA
22. Dome 010-FNLA
23. Switch Assembly 010-31302
24. Rivet 010-FNLA
25. Indicating Plate 010-FNLA
25. Indicating Plate 010-FNLA
26. Washer 010-11246
27. Outlet & Holder Assembly 010-FNLA
28. Outlet Holder 010-95350
29. Screw 010-31320
30. Outlet 010-33321
31. Rivet 010-133054
32. Outlet Label 010-FNLA
33. Filter Ring, Poly Fiber 010-1800
33. Filter Ring, Poly Fiber 010-1815
33. Filter Bat, Foam 010-FNLA
34. Filter Bat Support 010-31791
35. Solderless Connector 010-239760
35. Wire Nut 010-SS32
36. Screw 010-FNLA
37. Connector Stamping & Pin Assembly 010-9271
38. Connector Stamping (Order Key #37) 010-FNLA
39. Connector Pin 010-FNLA
40. Dome Gasket Assembly 010-31775
41. Lower Motor Support Clamp Screw 010-FNLA
42. Lower Motor Support 010-6201
43. Keps Nut 010-31146
44. Secondary Support Ring 010-FNLA
45. Secondary Filter Support Grommet Order Fq-3117 010-FNLA
46. Secondary Filter Support Screen Order Fq-3117 010-FNLA
47. Secondary Filters (Princess May Use Either) 010-350450
47. Filter, Secondary Paper 010-1800
48. Perforated Cone (Plastic) 010-31770
49. Cone Retainer Screw 010-350712
50. Switch Lever Pad 010-FNLA
51. Switch Lever Hinge Pin 010-350751
52. Switch Lever Spring 010-500752
53. Switch Lever 010-500750
54. Switch Lockwasher 010-153318
55. Switch 010-31302
55. Switch, Step On W/15" Leads 010-FA3400
56. Upper Motor Support & Pin Assembly 010-FNLA
57. Upper Motor Support 010-31731
58. Connector Pin 010-33514
59. Switch Bracket 010-FNLA
60. Motor Protective Screen 010-FNLA
61. Attachment Crown 010-FNLA
61. Tool Caddy, All Canister Models Brown 010-500
62. Spring And Pin Assembly 010-7201
63. Retainer Pin (Order Key #62) 010-FNLA
64. Retainer Spring (Order Key #62) 010-FNLA
65. Screw 010-72008
66. Motor, Support Gasket 010-350060
67. Motor, 2 Sp W/Torq Converter (K33) 010-FNLA
67. Motor, 2 Sp (D31, K31X & Majestic) 010-FNLA
67. Motor, 2 Stage, 2 Speed 5 Wire 010-FNLA
67. Motor, 2 Stage, 2 Speed 010-3109
67. Motor, 2 Stage, 1 Speed 2 Wire 010-FNLA
68. Motor, 2 Stage, 1 Speed 2 Wire 010-FNLA
69. Rivet 010-FNLA
70. Indicator Light (95X Only) 010-95760
71. Thermostat (95X Only) 010-SS32
71. Lg. Solderless Connector 010-FNLA
72. Wire Nut 010-95798
73. Secondary Filter Support Assembly 010-FNLA
74. Secondary Filter Support Ring 010-FNLA
74. Secondary Filter Support Retainer (Order Key #72) 010-L1131101

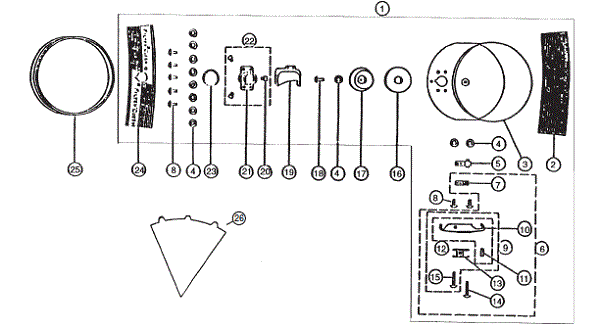

01. Dirt Container Assembly 010-FNLA
01. Dirt Container Assembly 010-FNLA
02. Rear Panel (31, 33 Only) 010-FNLA
03. Dirt Container 010-FNLA
04. Washer 010-11246
05. Clamp Spring Stamping 010-500778
06. Clamp Assembly With Spring 010-3174
07. Clamp Spring 010-500779
08. Rivet 010-FNLA
09. Clamp Assembly W/O Spring 010-FNLA
10. Clamp 010-FNLA
11. Protective Pad 010-95786
12. Clamp And Pad Assembly 010-FNLA
13. Clamp Link 010-FNLA
14. Clamp Rivet 010-FNLA
15. Clamp Link Rivet 010-FNLA
16. Cone Locator Gasket 010-500427
17. Cone Locator 010-FNLA
18. Rivet 010-133054
19. Dirt Deflector Stamping 010-200451
20. Bag Inlet Pin 010-FNLA
21. Inlet 010-FNLA
22. Inlet And Pin Assembly 010-35043
23. Inlet Gasket 010-92407
24. Front Decorative Decal 010-FNLA
24. Front Decorative Decal 010-FNLA
25. Dirt Container Gasket 010-200430
26. Filter Cone, Paper 12 Pk 010-50047
26. Filter Cone, Paper 12 Pk 010-1400

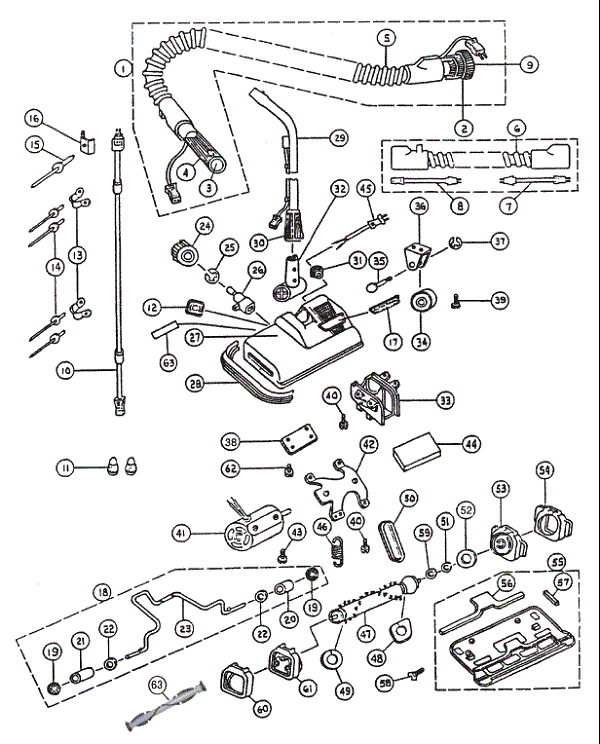

01. Complete Hose Assembly, 6' 010-48842
01. Complete Hose Assembly, 10' 010-4884210
01. Complete Hose Assembly With Oem Ends Electric Wire Reinforced ' 010-4002
01. Complete Hose Assembly, Electric Wire Reinforced ' Brown 010-FNLA
02. Connector Assembly 010-48802
02. Hose Coupling Assembly, Machine End Brown 010-FNLA
03. Adaptor Tube Assembly 010-48852
03. Hose Coupling Assembly, Attachment End 010-FNLA
04. Tube Seal Long 010-92842
04. Sleeve, Attachment Hose End Brown 010-FNLA
05. Electric Hose With Pigtails 6' 010-FNLA
05. Electric Hose With Pigtails 10' 010-FNLA
05. Electric Hose With Pigtails Wire Reinforced ' Brown 010-FNLA
05. Electric Hose With Pigtails Crushproof ' Brown 010-FNLA
06. Electric Hose Without Pigtails 6' 010-FNLA
06. Electric Hose Without Pigtails 10' 010-FNLA
06. Electric Hose, Wire Reinforced ' Brown 010-FNLA
06. Electric Hose, Crushproof ' Brown 010-FNLA
07. Pigtail, 10.5" Old Style Male/Male 010-FNLA
07. Pigtail, 10.5" Male/Female 010-488212
07. Pigtail, 10.5" Male/Female Brown 010-FNLA
08. Pigtail, 18" 010-FNLA
08. Pigtail, 18" Male/Female 48 Series Brown 010-FNLA
08. Pigtail, 18" Male/Female 88 Series Brown 010-FNLA
09. Inlet Gasket 010-3407
10. Handle Tube Cord 010-48362
10. Cord, 28" Male/Female P.N. Wand Brown 010-FNLA
11. Solderless Connector 010-48760
11. Wire Nut 010-SS32
12. Hi-Low Indicating Plate 010-482442
13. Cord Clip 010-48305
14. Pop Rivet 010-48329
15. Pop Rivet 010-48317
16. Cord Connector Clamp 010-FNLA
17. Name Plate (Decal) 010-487062
17. Name Plate (Decal) 010-FNLA
18. Roller Arm Assembly 010-5222
19. Retainer Ring 010-48276
20. Right Roller 010-52283R
21. Left Roller 010-52283L
22. Washer 010-48243
23. Roller Arm 010-FNLA
24. Control Knob 010-482212
25. Retainer Ring 010-52222
26. Cam 010-52225
27. Nozzle Body W/Onserts 010-482092
28. Bumper 010-FNLA
29. Wand Assembly, W/Cord & Gray Cuff 010-48302
29. Wand Assembly, W/Cord & Brown Cuff 010-FNLA
30. Tube Seal 010-FNLA
31. Strain Relief 010-56306
32. Swivel Adaptor Assembly 010-FNLA
33. Adaptor Retainer Assembly 010-48264
34. Wheel, Black 010-7100
35. Wheel Shaft 010-52249
36. Wheel Bracket 010-52247
37. Retainer Ring 010-FNLA
38. Roller Arm Retainer Plate 010-48282
39. Wheel Bracket Screw 010-31215
40. Screw 010-FNLA
41. Motor 010-9608
41. Motor, Power Nozzle 010-6050M
42. Motor Bracket 010-48217A
42. Motor Strap Princess Only (Not Shown) 010-FNLA
43. Motor Mounting Screw 010-48218
44. Motor Sound Absorbing Pad 010-48219
45. Nozzle Cord, W/O Strain Relief 010-483232
45. Nozzle Cord W/Strain Relief 010-883232
46. Roller Arm Spring 010-48284
47. Revolving Brush 010-FNLA
63. Brushroll Complete With Ball Bearing Ends 010-2030
48. Belt Dirt Seal 010-52228
49. Bearing Dirt Seal 010-52228A
50. Belt 010-48260
50. Belt 010-1050
51. Fiber Washer 010-48216
52. Felt Dirt Seal Washer 010-48267
53. Brushroll Bearing Assembly 010-5223
54. Brush Mount 010-FNLA
55. Bottom Plate Assembly 010-5224
56. Sealing Gasket 010-88280
57. Strip Gasket 010-88279
58. Bottom Plate Retainer Screw 010-48215
59. Steel Washer 010-48246
60. Brush Mount 010-FNLA
61. Brushroll Bearing Assembly 010-4823
63. Brushroll Complete With Ball Bearing Ends 010-2005
63. Brushroll Complete With Ball Bearing Ends 010-2030

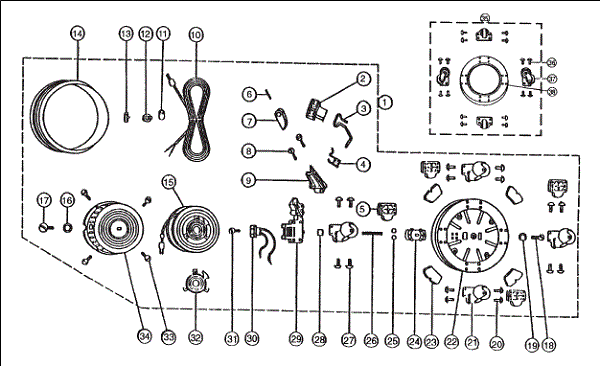

01. Castor And Reel Assembly 010-FNLA
02. Cover 010-FNLA
03. Lever 010-FNLA
04. Lever Tension Spring 010-FNLA
05. Ball Castor Spacer 010-FNLA
06. Cam Retainer Pin 010-FNLA
07. Cam 010-FNLA
08. Cam Holder Screw 010-FNLA
09. Cam Holder 010-FNLA
10. Cord 010-95301C
10. Cord, 20' 010-FA305
11. Shock Absorber 010-FNLA
12. Cord Bushing 010-FNLA
13. Front Indicating Plate 010-FNLA
14. Retaining Ring 010-FNLA
15. Reel Mechanism Assembly 010-FNLA
16. Lock Washer 010-FNLA
17. Shaft And Cover Screw 010-FNLA
18. Shaft Screw 010-FNLA
19. Lock Washer 010-FNLA
20. Rivet 010-FNLA
21. Ball Castor 010-FNLA
22. Castor Plate 010-FNLA
23. Protective Foam Pad 010-FNLA
24. Brush Block Assembly 010-FNLA
25. Terminal Insulator 010-FNLA
26. Terminal Insulator Tube 010-FNLA
27. Rivet 010-FNLA
28. Outlet Insulator 010-FNLA
29. Castor Spacer 010-FNLA
30. Outlet 010-FNLA
31. Outlet Screw 010-FNLA
32. Collector Ring Block Assembly 010-FNLA
33. Cover Screw 010-42012
34. Cover 010-42006
35. Dolly Assembly 010-9562A
36. Rivet 010-57784
37. Ball Castor 010-FNLA
38. Castor Plate 010-95780A

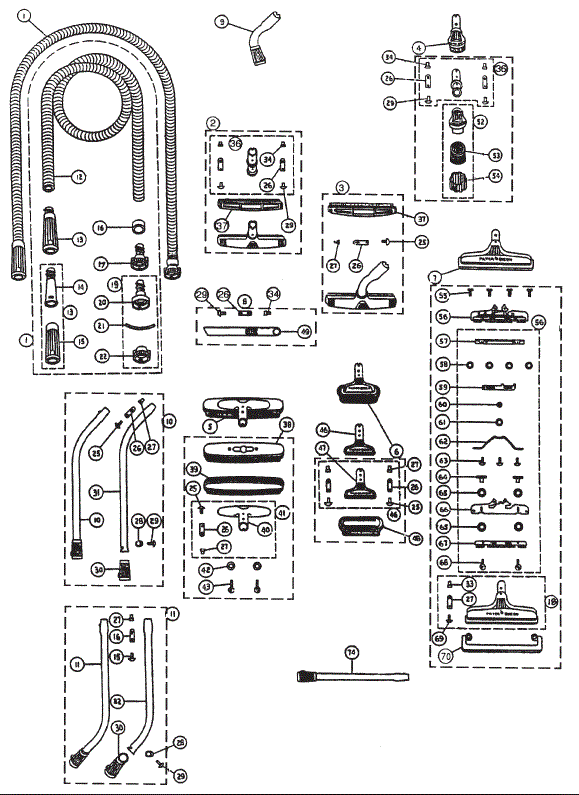

01. Straight Suction Hose Assembly 6' 010-9584
01. Hose, Non-Electric Wire Reinforced Complete ' Brown 010-FNLA
01. Straight Suction Hose Assembly 10' 010-FNLA
02. 10" Bare Floor Brush W/Out Adapter 010-FNLA
03. 10 Bare Floor Brush Metal Neck Curved 010-FNLA
04. Complete Round Brush Assembly 010-FNLA
04. Dust Brush, W/Lock Pin Brown 010-FNLA
05. Complete 14 Floor Brush Assembly 010-5500
06. Complete 6 Nozzle & Brush Assembly 010-FNLA
07. Complete Rug Nozzle Assembly 010-FNLA
07. Rug Tool, 11" W/Lock Pin Brown 010-FNLA
08. Complete Crevice Tool 010-9279
08. Crevice Tool, W/Lock Pin Brown 010-FNLA
08. Crevice Tool, 28" 010-927928
09. Metal Curved Adaptor Tube Assembly 010-48552
10. Complete Upper Wand Assembly 010-9278
11. Complete Lower Wand Assembly 010-9277
12. Straight Suction Hose 6 1/2 010-92802
12. Hose, Wire Reinforced ' 010-FA42102
12. 10 Ft. Hose 010-FNLA
13. Adaptor Tube Assembly 010-FNLA
13. Hose Coupling, Attachment End W/Threads Brown 010-FNLA
14. Adaptor Tube (Order Key #13) 010-FNLA
15. Tube Seal Long 010-96842A
15. Sleeve, Attachment Hose End Brown 010-FNLA
16. Ferrule 010-92814
16. Ferrule 010-FA4552
17. Connector Tube And Base Assembly 010-FNLA
17. Hose Coupling, Mach. End Brown Cover 010-FNLA
18. 11 Nozzle (Order Key #7) 010-FNLA
19. Connector Assembly 010-FNLA
20. Connector Tube And Base Assembly (Order Key #19) 010-FNLA
21. Hose Gasket 010-3407
22. Connector Cover (Order Key #19) 010-FNLA
25. Rivet 010-FNLA
26. Retainer Spring 010-350231
27. Retainer Pin 010-97232
28. Stop Sleeve 010-156278
29. Rivet 010-FNLA
30. Tube Seal Short 010-92842
31. Upper Wand, W/Cuff Black 010-9278
31. Upper Wand, W/Cuff Brown 010-FNLA
32. Lower Wand, With Cuff Black 010-9277
32. Lower Wand, W/Cuff Brown 010-FNLA
34. Retainer Pin 010-156232
35. Rivet 010-FNLA
36. Adaptor Assembly 010-FNLA
37. Bristled Insert 010-FNLA
38. 14 Brush 010-FNLA
39. Bumper 010-92201
40. Adaptor Nozzle 010-398072
41. Nozzle W/Pin & Spring 010-39852
42. Washer 010-530025
43. Screw 010-FNLA
46. 6 Nozzle And Pin Assembly Black 010-FNLA
46. Upholstery Brush Assembly W/Lock Pin Brown 010-FNLA
47. 6 Nozzle, Black 010-FNLA
48. 6 Brush Assembly 010-92291
49. Crevice Tool With Lock Pin 010-FNLA
52. Round Brush Assembly 010-FNLA
53. Bristled Insert 010-33806
54. Dust Brush Insert, Horse Hair 010-EXR5350
55. Brush Guide Screw 010-31215
56. Brush & Guide Assembly 010-3122
57. Brush Holder 010-31223
58. Washer 010-11246
59. Brush Slide 010-200255
60. Slide Tension Washer 010-94276
61. Washer 010-31246
62. Brush Tension Spring 010-FNLA
63. Shouldered Rivet 010-500226
64. Brush Guide Stud 010-FNLA
65. Fiber Washer 010-500243
66. Brush Guide 010-31214
67. Brush Strip 010-95224
67. Brush Insert, Rug Tool 9 1/4" Long 010-FNLA
68. Brush Screw 010-FNLA
69. Rivet 010-500212
70. Bumper 010-92201
74. Straight Extension Wand Assembly 010-FNLA
74. Curved Extension Wand Assembly 010-9277
xx. Felt Polishing Pad Assembly 010-5555
|
|
|
Follow us on Twitter
Like us on Facebook
